Using Realization Matrices
Realization matrices allow you to define and view the realization links between objects in the repository.

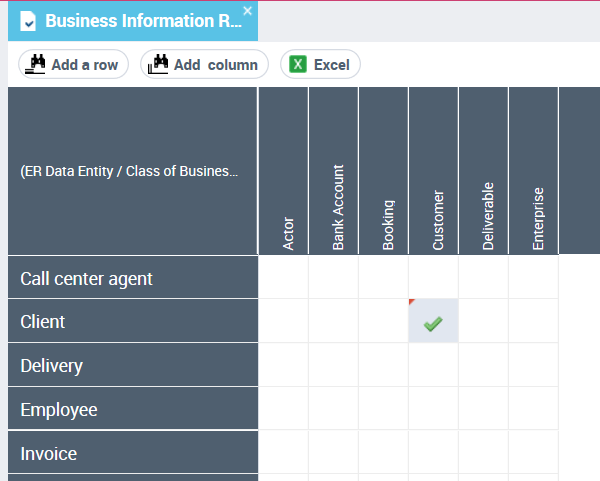

Example
Business Information X Logical Data
This matrix is used to specify that logical data (classes, data views, etc.) realize business information (concepts, concept types, etc.).
Realization Levels
Business Information X EA Assets
This matrix maps business data (concepts, concept types, etc.) to enterprise architecture objects (applications, processes, etc.).
Business Information X Logical Data
Realization of business data (concept, concept types, etc.) by logical data (classes).
Business Information X Metadata
Realization of business data by metadata.
Business Information X Physical data
Realization of business data (concept, concept types, etc.) by physical data (tables, relational domains, etc.).
Logical Data X Logical Data
Realization of logical data by other logical data.
Logical Data X Metadata
Realization of logical data by metadata.
Physical Data X Metadata
Realization of physical data by metadata.
Concept Domain Maps X Data Domain Maps
Realization of concept domain maps by data domain maps.
Concept Domains X Logical Data Domains
Realization of concept domains by logical data domains.
Logical Data Domains X Data Domains
Realization of logical data domains by data domains.
The realization of logical data (classes, data views, etc.) by physical data (tables, table views, etc.) takes place via the synchronization tool. See Synchronizing logical and physical models.Creating a Realization Matrix
To create a realization matrix in HOPEX Data Governance:
1. Click the Tools > Data Realization navigation menu.
2. In the edit area, select the type of matrix to be created.
3. Click New.
The matrix appears in the edit area.
4. Add the data that realizes it in a row and the data realized in a column.
5. To specify that one object realizes another object, click on the cell of the matrix that connects the two objects in question.
