Actions on an Object in a Tree
In a tree:

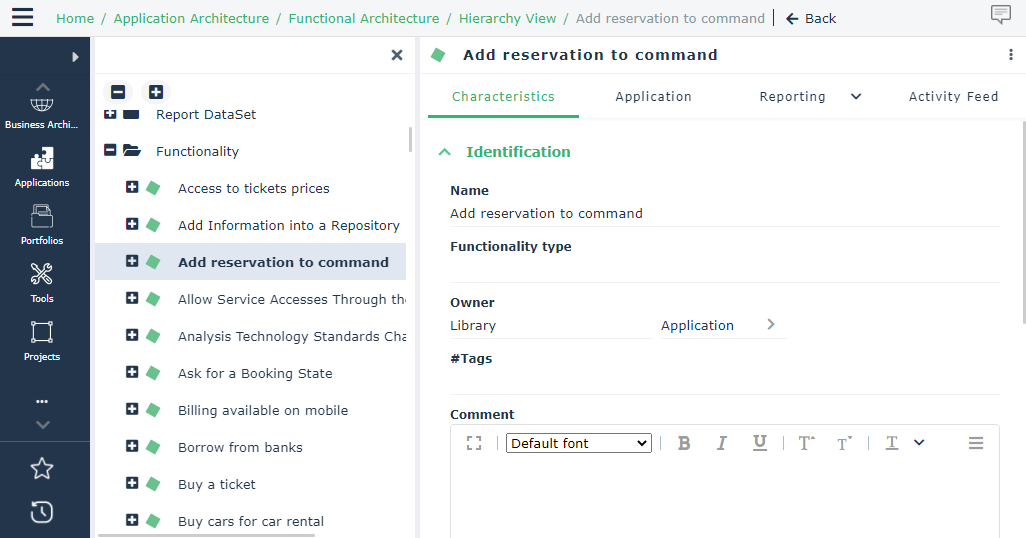

• when you click an object, its proprieties display to the right of the tree
If the tree is contained in a column, the object proprieties display over the columns.• other actions on an object are available:
• when you hover the cursor over the object row
• when you right-click the object row, in the object pop-up menu.

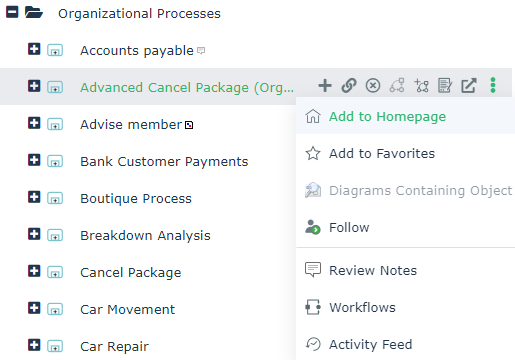

Actions on the row of an object
In a tree, when you hover the cursor over an object row, a list of buttons appears:
• In the first part of the list, you can perform current actions on the object.
• The second part of the list gives you direct access to the collaboration features relating to this object.
Icon | Action on the object | For more details, see: |
|---|---|---|
 | Quick access, to define specific characteristics of the object | |
 | Connect the object to an object type to which it can be connected | |
 | Remove the object from its folder (and/or delete it from the repository depending on cases) | |
 | Open or preview the diagram(s) describing the object, in the edit area, to the right of the tree | |
 | Create a diagram in the edit area, to the right of the tree | |
 | Display the object properties in the edit zone, to the right of the tree | |
 | Display the object properties in a new browser tab | |
 | Add the object to your home page | |
 | Add the object to your favorites | |
 | Open the diagram(s) containing the object, in the edit area | |
 | Follow the object to be informed of all the modifications performed on this object |
Icon | Action/Collaboration on an object | For more details, see: |
|---|---|---|
 | Access the Review Notes on the object | |
 | Access the object Workflow page. | |
 | Access the Activity Feed of the object |

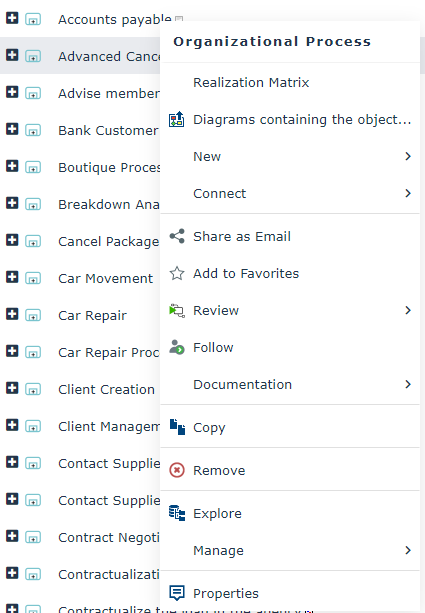

Object pop-up menu
To access all commands specific to an object from a tree:
Right-click the object row and and in its pop-up menu, select the action.
