Must licence utility
A launcher licensing.exe is installed in the root folder of the HOPEX installation. It is a shortcut to the program mgwusrmng.exe located in the 'System' folder of the HOPEX installation.
User Interface
Several Windows are available:
• Select server path window: to locate a folder containing the Must licence.
• User management window: to configure Must licences located in this folder.
• Select HOPEX installation window: to locate the configuration folder of the HOPEX installation.

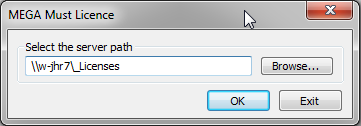

Select server path window
Click 'Browse' and select the folder containing the Must licence to be configured. The 'OK' button is enabled as soon as a file with the .must extension is identified.
Verify that the server path is the same as the UNC address chosen for the licence.

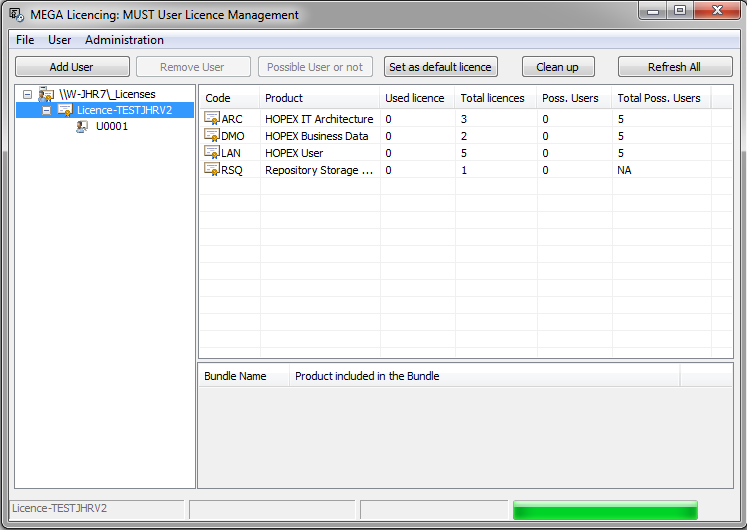

User management window
This window displays several elements:
• A top menu (File, User, Administration) and a toolbar 'Add User, Remove User..)
• The left pane displays the Must licence available in the selected folder.
• The top right pane displays the products available for the selected licence.
• The bottom right pane displays the bundle definition, if any.
The top right pane has several columns. The list is different if a user or a licence is selected:
• Code: the code of the technical product.
• Product: the name of the technical product.
• Connected: the number of users currently logged in to the product (this figure changes over time).
• Used licences: the number of licence tokens currently used for the product (this figure changes over time).
• Remaining licences: the number of licence tokens currently available for the product (this figure changes over time).
• Total licences: the number of licence tokens programmed for the product (this figure does not changes over time).
• Poss. User: the number of users that are set as possible users of the product (this figure changes over time).
• Remaining Poss. Users: the number possible users currently available for the product (this figure changes over time).
• Total Poss. Users: the number possible users programmed for the product (this figure does not changes over time).
The licence status is displayed in the left pane:
|
Display
|
Status
|
Possible causes
|
 |
Valid
|
-
|
 |
Invalid
|
Licence has expired
Locking failed: the folder address containing the licence file does not match the expected UNC
|
The user status is displayed:
|
Display
|
Status
|
 |
Connected
|
 |
Not connected
|

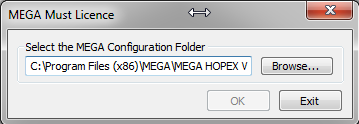

Select HOPEX installation window
Click 'Browse' and select the folder containing the 'CFG' folder of the HOPEX installation to be configured. The 'OK' button is enabled as soon as the Megasite.ini file is identified.
