BPMN Import Overview
The Business Process Modeling and Notation (BPMN) is a graphical representation for specifying processes. This design can be serialized into an xml file that supports the BPMN objects and diagrams. Each process is serialized into a bpmn file.
The HOPEX BPMN import aims at importing workflow definitions from BPMN files so that workflows modeled in other BPMN modeling tools or workflow engines can be used by HOPEX.
Prerequisites
The BPMN import feature is available with HOPEX Buisiness Process Analysis and supports BPMN version 2.0.
Source BPMN Tools
It should be possible to import BPMN data and diagrams from Tibco, Bonita, Yaoqiang BPMN, Joinwork Process and IBM BlueWorks.
Activate/Deactivate BPMN Import

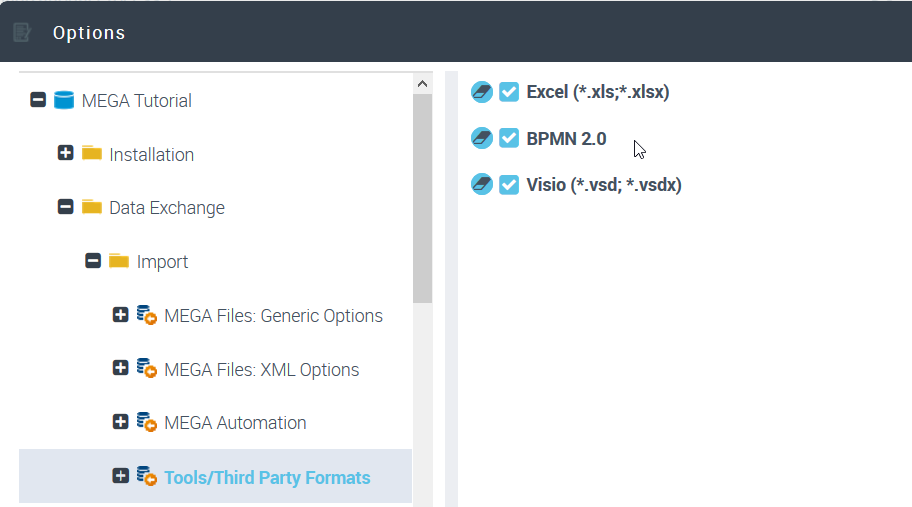

The BPMN import feature can be activated or deactivated for a user, a profile, an environment, or a site. This can be done using the corresponding option:
Scope of BPMN Import
The purpose of BPMN import is to import an HOPEX Process into a BPMN file.
The tool handles translation of BPMN processes into one of the following process types in HOPEX:
• System Processes
• Organizational Processes
• Value Streams
The list of supported mappings is detailed below. See Object Correspondences.
Importing BPMN Files
To import a BPMN file from HOPEX:

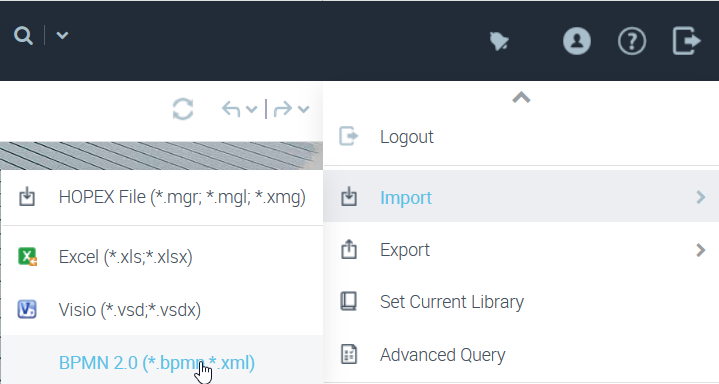

1. In HOPEX, select Main Menu > Import > BPMN 2.0 (*.bpmn, *.xml).
The import dialog box appears.

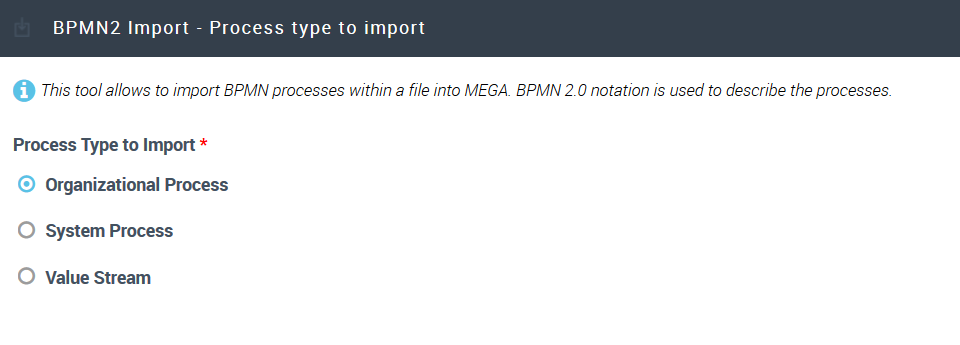

2. Select the type of object you want to import, for example Organizational Process, and click Next.
Nb : System Process is the default value.
3. Specify the path of the file to be imported.
4. Click Next.

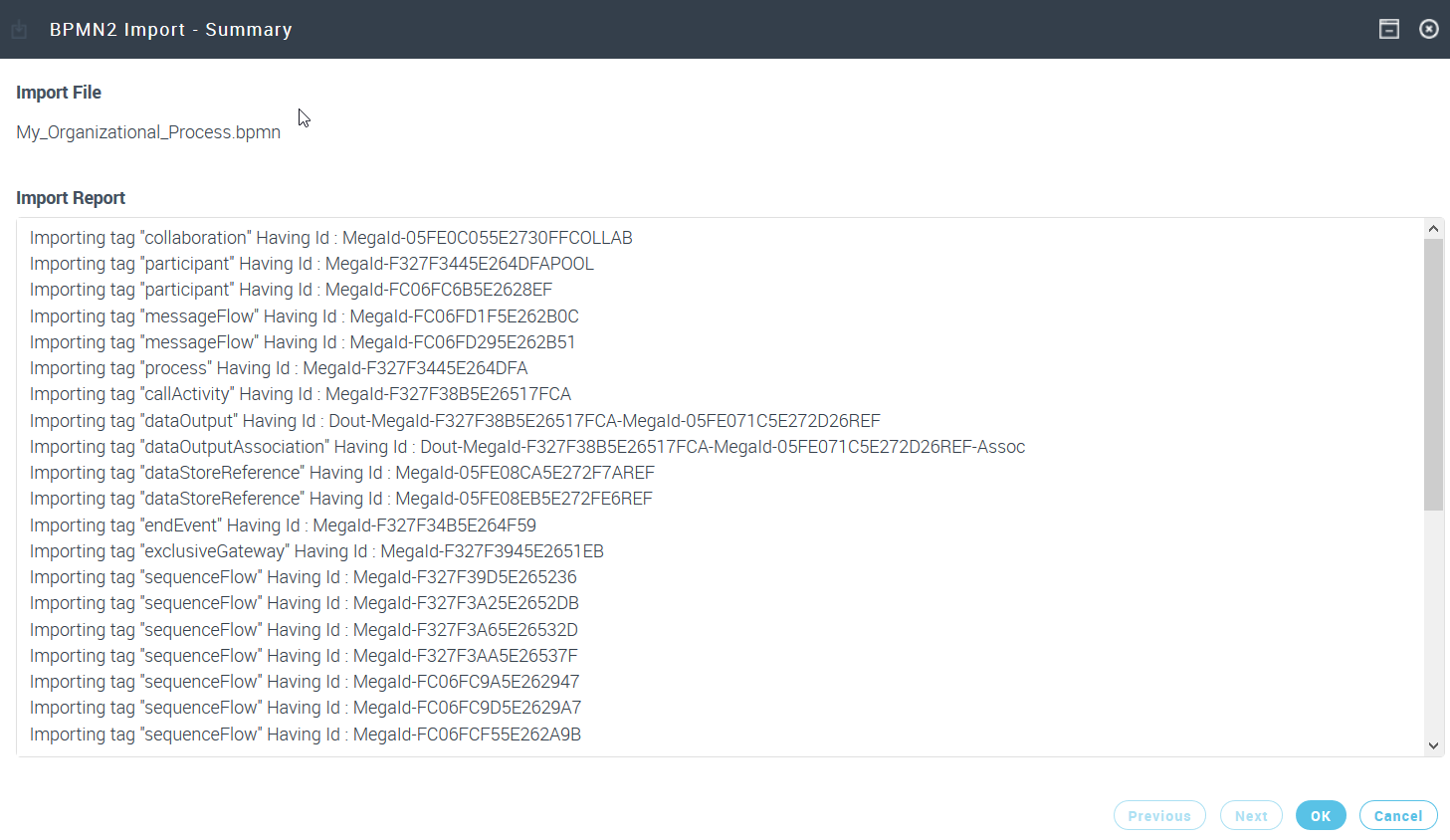

A window shows progression and a report of the import.
5. Click Finish.
The diagram containing the description of the BPMN concepts opens.
