SvcV-3a Systems-Service Matrix
SvcV-3a Description
Purpose of SvcV-3a
|
SvcV-3a
|
SvcV-3a Systems-Service Matrix
|
The relationships among or between systems and services in a given Architectural Description.
|
Detailed description of SvcV-3a
SvcV-3a HOPEX Implementation
A matrix helps create Resource flows between systems, application systems and organizations without using diagram.
The SvcV-3a Systems-Services Matrix describes the relationships among or between systems and services in a given Architectural Description. A SvcV-3a enables a quick overview of all the system-to-service resource interactions specified in one or more SvcV-1 Services Context Description models.
Services Hierarchy
Services hierarchy offers a hierarchical description of services (functionalities, technical functionalities and hardware functionalities).

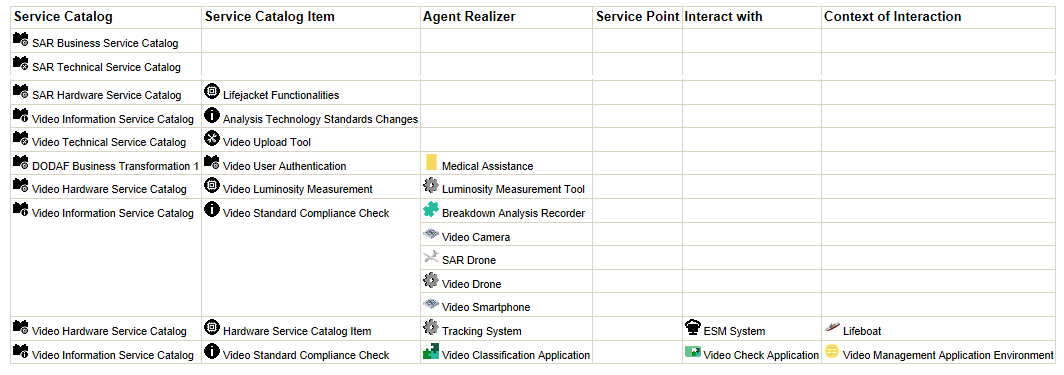

Service Catalog Report
To access the SvcV-3a report:
From the navigation menu, select Services Viewpoint > SvcV-3a Systems-Services Matrix > Service catalog report.This report consists of a table displaying:
• service catalogs and service catalog items together with realizers and service points
• interactions with their context.

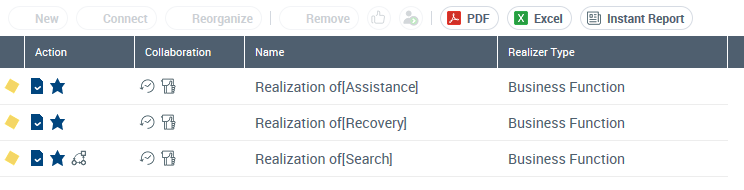

Functionality realizations
This tile lists functionalities with their realizer.
