Search in ERQL mode
An ERQL query enables to search for elements in the repository. Its syntax is based on a Select, followed by the searched element, to which a condition is applied.
Example:
“select Org-Unit where Name like” Org-Unit where Name like”#agent#"
This query enables to find org-units whose name contains agent.
The ERQL query syntax and conditions are detailed in the "ERQL Query Syntax" section.
Performing an advanced search in ERQL mode:
To perform an advanced search in ERQL mode:
1. Access advanced search.
The Advanced Search page displays in the edit area.
2. In the dropdown menu, select the object type on which you want to perform your search.
*If needed, enter the first characters of the object type.
*To extend or restrict the list of object types searched, see Configuring the Search Tools.

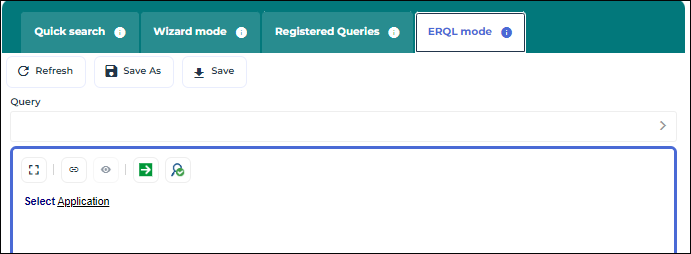

3. Click the ERQL mode pane.
The list of registered queries relating to the selected object appears.
4. Enter your query respecting the ERQL query conditions and syntax.
*See "ERQL Query Syntax".

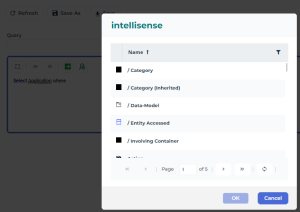

You can use the IntelliSense feature to help you enter your query:
• Press <Ctrl> + <Space> to display the list of eligible elements.
*To extend/restrict the eligible elements displayed in the list, see Expanding the advanced search to the abstract metamodel.
• Select an element to complete your query.
*The calculated links are prefixed with the character / and appear first in the Intellisense tool.
5. (Optional) Click Analyze to test the syntax of your request.
*To save your request, click Save As; see Saving an ERQL query.
6. Click Process to run the search.
The result list is displayed.
7. Select the object you want to consult.
*You can export the list in Excel format
*You can launch an instant report from the list, see Launching an instant report from a list.
*To return to your search, in the breadcrumb trail, click Advanced Search. If needed, you can modify it.
Performing an advanced search in ERQL Mode with the help of the wizard mode
To simplify data entry, you can build a query from the wizard mode.
To perform an advanced search in ERQL Mode with the help of the wizard mode:
1. Access advanced search.
The Advanced Search page displays in the edit area.
2. In the dropdown menu, select the object type on which you want to perform your search.
*If needed, enter the first characters of the object type.
*To extend or restrict the list of object types searched, see Configuring the Search Tools.
3. In the Wizard Mode pane, select the search parameters.
4. When you have selected your parameters, select the ERQL mode pane.
5. In the command bar of the ERQL mode pane, click Refresh.

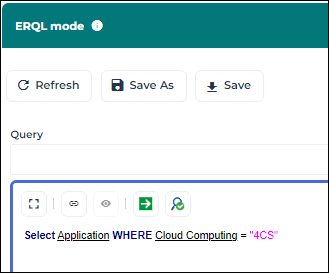

The syntax of the query appears.
6. Complete the syntax.
You can use the Intellisense feature to complete your code:
• Press <Ctrl> + <Space> to display the list of eligible elements.
*To extend/restrict the object types displayed in the list, see Expanding the advanced search to the abstract metamodel.
• Select an element type to complete your code.
*Abstract objects are prefixed with [A] and are listed after the concrete objects in the Intellisense tool.
Abstract objects are prefixed with the / character and are first listed in the Intellisense tool.
7. (Optional) Click Analyze to test the syntax of your request.
*To save your request, click Save As; see Saving an ERQL query.
8. Click Process to run the search.
The result list is displayed.
*You can export the list in Excel format
*You can launch an instant report from the list, see Launching an instant report from a list.
*To return to your search, in the breadcrumb trail, click Advanced Search. If needed, you can modify it.
Saving an ERQL query
You can save an ERQL query to make it available in the registered queries.
To save an ERQL query:
1. Define your ERQL query.
2. Click Save As.
3. In the Name field, enter a name for your query.
4. In the Stereotype field, select the query type.
5. Click Next to reread the code of your query.
6. Click OK.
Your query is available in the Registered Queries pane of the Advanced search.
