Concepts
Metamodel definition commands concern:
• MetaClasses (or object types)
• links possible between these MetaClasses (called MetaAssociations)
• the two MetaAssociationEnds of each of these MetaAssociations
• MetaAttributes (characteristics).
Object comments or texts are assimilated in MetaAttributes.
|
Concept
|
Syntax
|
|---|---|
|
MetaClass (or object type)
|
metaclass
|
|
MetaAssociation (or link)
|
MetaAssociation
|
|
MetaAssociationEnd
|
MetaAssociationEnd
|
|
MetaAssociationType (or link type)
|
MetaAssociationType
|
|
MetaAttribute (or characteristic)
|
MetaAttribute
|
|
MetaAttributeGroup (or group of MetaAttributes)
|
MetaAttributeGroup
|
|
MetaAttributeValue (or value of MetaAttribute)
|
MetaAttributeValue
|
Concept names
The name of a concept is unique, ie. the name for a MetaClass, a MetaAssociation, a MetaAttribute or a text must be used only once, including all languages.
Names of MetaClasses with standard naming rule contain 255 characters maximum.
For information on namespaces, see Managing Namespaces.Name of a concept must begin with a letter (A to Z). The following characters are authorized for use in concept names:
|
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m n o p q r s t u v w x y z
à á â ã ä å ç é è ë ê ì í î ï ñ ò ó ô ö ù ú û ü ÿ ý
0 1 2 3 4 5 6 7 8 9
* ( ) / = + % ? $ _ & €
, ; - :
|
Hiragana, Katakana and Kanji characters are accepted for object names in the Japanese language.You cannot use “& , ; - : ” as the first character. There can be spaces in the name, except as first and last character.
Unlike the other characters, the ampersand (&) is not controlled as the first character:• it can be used in an object name.
• it should not be used in the name of a MetaClass, MetaAssociation, MetaAssociationEnd or MetaAttribute.
Technical concepts other than repository core concepts, (MetaClass, MetaAssociation and MetaAttribute) have names beginning with an underscore (_).
It is impossible to define extensions with names beginning with characters "_" or "$".It is not recommended to restrict the list of characters as this may generate issues when executing queries or descriptors (see Restricting the names of object types).As you cannot use a name already in use, you must attach a prefix to your extension names. This avoids conflicts that might occur later when the standard metamodel is upgraded.
For example, if you create a metamodel extension called "Table" for HOPEX Business Process Analysis and later install HOPEX Database Builder, a conflict will occur.

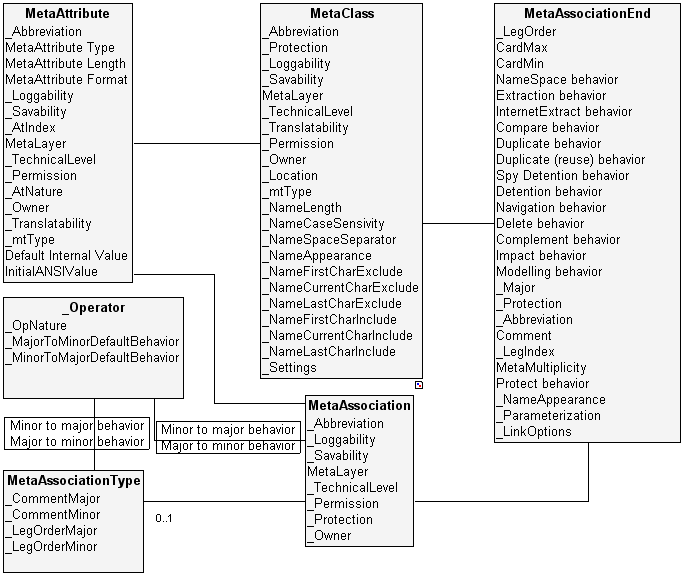

Metamodel diagram
All of these MetaClasses have the following attributes:
• Name
• Absolute Identifier
• Authorization
• Creation Date
• Modification Date
• Creator, Modifier
• Creator Name
• Modifier Name
• Authorization Level
• Creation Version
• Modification Version
• Comment and History
