CV-2 Capability Taxonomy
CV-2 Description
|
Model
|
Description
|
|---|---|
|
CV-2 - Capability Taxonomy
|
Captures capability taxonomies. The model presents a hierarchy of capabilities. These capabilities may be presented in context of a timeline - i.e., it can show the required capabilities for current and future capabilities.
|
The CV-2 model provides a structured list of the capabilities and sub-capabilities required for the vision established in the CV-1 model. This list of capabilities is to be delivered for a particular timeframe. It has a hierarchical structure where capabilities are sometimes subdivided into sub capabilities and/or functions in order to provide clarity and the appropriate level of granularity required by subsequent processes in the capability management process.
For a detailed description, see the DoDAF web site: CV-2: Capability Taxonomy.
CV-2 HOPEX Implementation
The enterprise is connected to a business capability map.
HOPEX DoDAF provides:
• Business Capabilities Maps to capture and organize capabilities
• Diagram descriptions, and hierarchy navigation.
• A tree to display the hierarchy of capabilities.
Business Capabilities
For example, to respond to a customer satisfaction objective, the organization must be able to provide services conforming to contractual commitments.
All capabilities are displayed with their capability map. You may group capabilities by capability map.
From business capabilities, you can create the following diagrams:
• capability structure diagram
• business capability decomposition tree

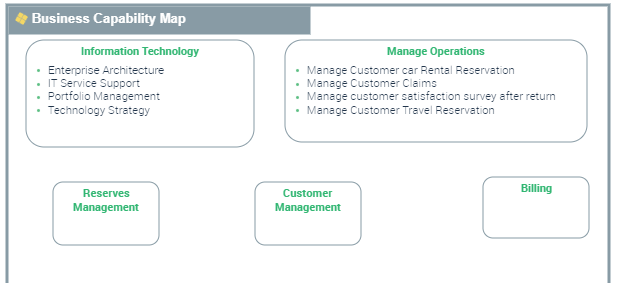

Business Capability Taxonomy Model
A capability map describes what the enterprise is capable of producing for its internal needs or for meeting the needs of its clients. It is thus based on the main business capabilities of its activity at a given moment.
Capability Hierarchy
This tree contains various folders and enables you to:
• create your own business capability hierarchy
• navigate from a business capability map and view its business capabilities.
The tree does not show the capability components.Capability Taxonomy Report
This report displays the description of capabilities owned and used by the enterprise.
