Process Impact Graph

This report is a dendrogram. It displays the link between process and different object types.

See Handling a Dendrogram for further information.

Path

Property page of the process > Reporting > Process Description > Process Impact Graph.

Object types

Object type	For further information
Value chain	See Representing the value stream fulfillment with HOPEX Business Process Analysis.
Business capability	See Describing Fulfillment of a Business Capability.
Process category	See Creating a Process Category.
Customer journey	See Creating an involved resource in a customer journey.
Project	See Prerequisites to linking a project to a process.
Risk	See Creating a Risk.
Concept	See Prerequisites to linking a concept to a process.
Application	See Creating a System Used in a Process diagram.
Participant	See Creating a Participant (Org-Unit ).

Prerequisites to linking a project to a process

You need to use HOPEX Project Portfolio Management.

To display the link between a process and a project:

Fill the process in the section Project Deliverables.

For further details, see Project deliverables.

Prerequisites to linking a concept to a process

You need to use HOPEX Information Architecture.

To display the link between a process and a concept:

1. In the diagram toolbar, click Data Object.

2. In the Creation of Data Object window, select a Content.

3. Access the property page of the content and expand the Business Information Used section.

4. Click New.

In the Add Concept window, select an existing concept or create a new one.

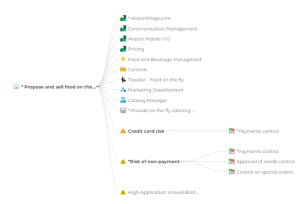

Result
