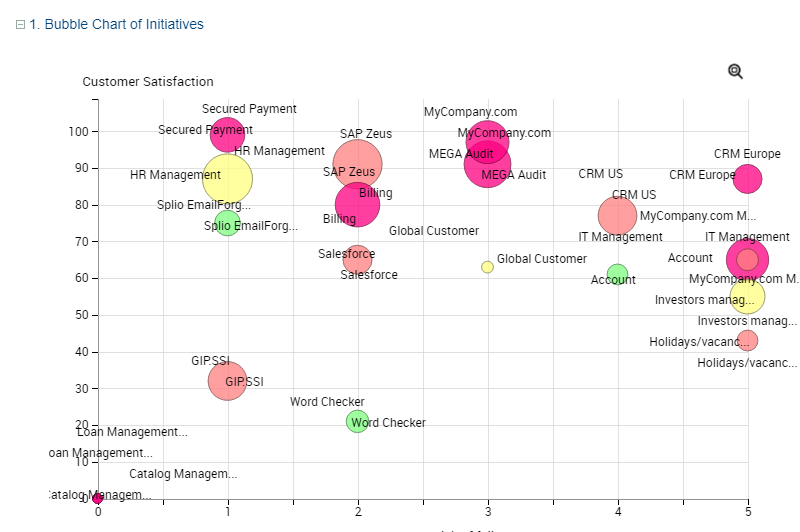

Handling a Bubble Chart
In a bubble chart, you can:
• display, hide or reduce the length of labels to lighten the chart
• display and highlight a bubble label
• display the link between each bubble and its label
• add a background image
• zoom in on and move about in the chart
• get the list of objects included in a bubble
Modifying the bubble style in a bubble chart
You may, for example:

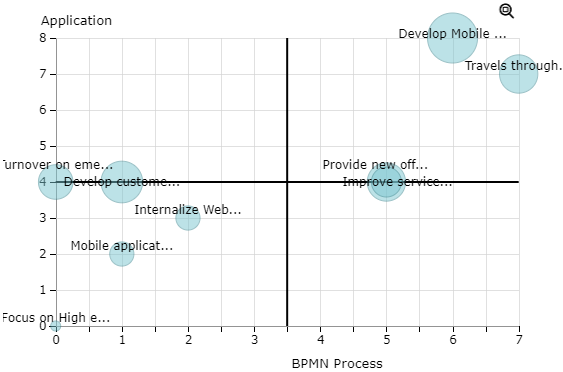

• display median axes
To remove or modify the grid lines, see Modifying the style of a report chapter chart.• modify the bubble color
• modify the bubble opacity
By default: 50; to increase the opacity, set a value higher than 50; to decrease the opacity, set a value lower than 50.
• modify the bubble text font

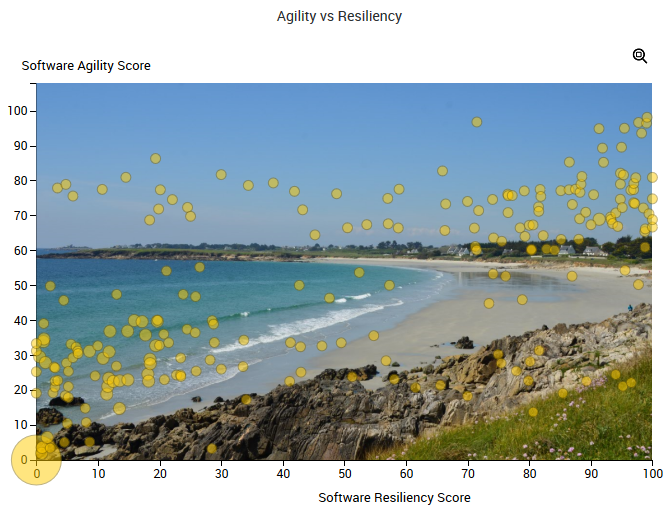

• add a background image (.png format)
You can add an image (in .png format), which is saved in HOPEX.
To modify the bubble style in a bubble graph:
1. Edit the report.
2. In the report page, click Edit Style Parameter Values
and select All Series.
and select All Series.The edit pane appears to the right.
3. In the Style section, modify the relevant parameters.
To reset a parameter value, delete the value you entered.To reset all values, click Reset Parameters Values
. Caution: all parameter values in the report are also reset.4. Click Apply.
Your modifications are immediately taken into account in the report.
If the modifications do not appear automatically, click
.Improving a bubble chart readability
To improve a bubble chart readability:
1. Access the bubble chart.
2. (If needed) Zoom in and move through the chart.
3. Modify the label style to display/hide the labels and their links.
4. (Instant Report) To quickly show/hide labels: below the chart, select Options, then select/clear Display Labels.
You can also move the Label Length cursor to reduce the length of the labels text.
5. (If needed) Add a background image

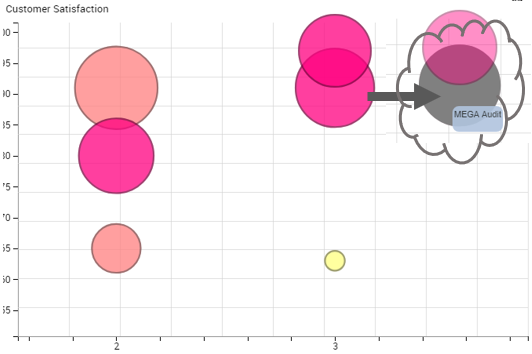

6. Roll the mouse over a bubble to highlight its label.

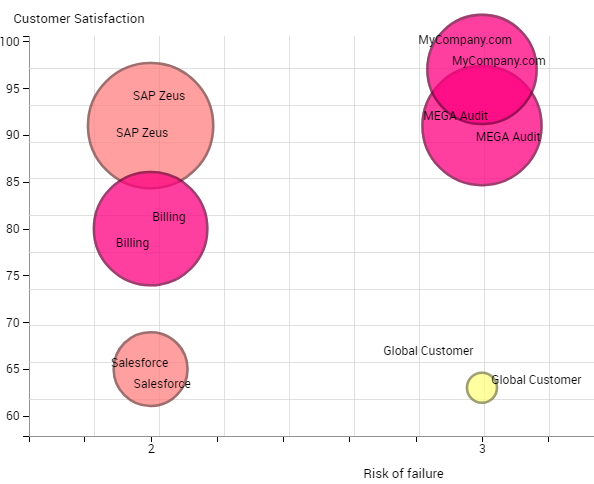

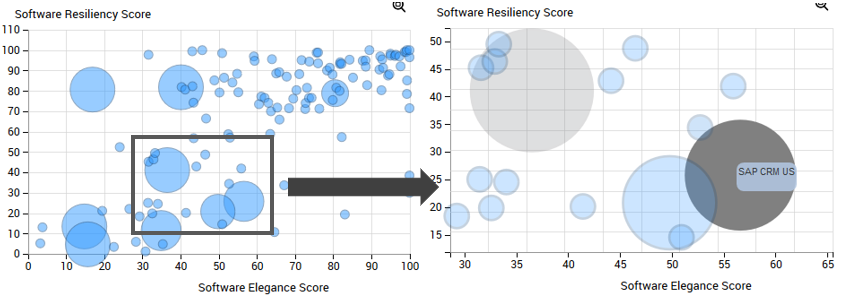

Zooming in and moving through a bubble chart
To zoom in and move through a bubble chart:
1. In the bubble chart, use the mouse wheel to zoom in/zoom out.
The zoom is performed on the graph as a whole.
2. (If necessary) To move through the chart, click the chart, keep the mouse button pressed and move the mouse.
