Drawing a Sketch with HOPEX
There are several ways of creating sketching diagram with HOPEX .
•
Creating a new sketch
To create a sketch with HOPEX:
1. In the navigation menu, select Collaboration > Collaboration Overview > All Sketches.
2. Click New.
A sketch creation dialog box opens.
3. Specify the name and click OK.
The sketch appears in the list.
Creating a sketching diagram from a sketch
To create a sketching diagram with HOPEX:
1. Click the navigation menu then select Collaboration > Collaboration Overview > All Sketches.
2. Select the sketch that interests you, open its contextual menu and select New > Diagram.
3. Select Sketching diagram and click OK.
The diagram opens.
To insert a sketching item or a sketching link in a sketching diagram, see “Using diagrams” chapter in HOPEX Common Features guide.Modifying the position of a sketching item name
In a sketch, a shape may be associated with an explanatory text rather than a name. In the case, it may be interesting to move the name of the shape in its center.

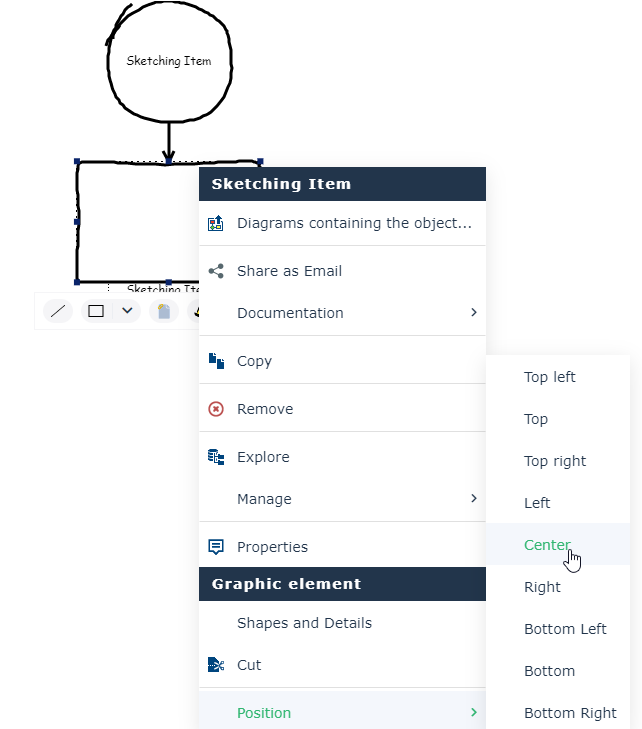

To move the name of a shape:
1. Select the shape that interests you and open its contextual menu.
2. In the Graphical Element section, select Position > Center.
The name appears in the center of the shape.
Connecting a sketching item with a repository object
If a sketching item represents an object already created in the repository, you can connect the sketching item to the architecture element.
To do this:
1. Open the Characteristics property page of the sketching item.
2. From the Represented object field, connect a repository object.
3. (Optional) In Appearance section, check the box Use represented object representation.
The sketching item appears in the form of the object type selected.
To associate a sketching item with a repository object, you can also drag-and-drop an object from a navigation tree.No check is made between the chosen shape and the type of the architectural element.Creating an Organizational Process from a sketch
If you also have the HOPEX Business Process Analysis product, you can create an organizational processes from a sketch.
For more details on the created organizational process, see Creating an organizational process from a sketch.
