Using Cloud Services
The Cloud Service (considered as an IoT device) can be used in a deployment architecture. The Cloud service picture appears in the frame of the corresponding deployable package. You can import in your HOPEX repository Cloud Services Catalogs such as: Amazon (AWS), Microsoft (Azure) and Google (GCS). The imported files contain the name and the pictures of the Cloud Services proposed by the editor.
The Cloud Services are provided by your administrator using Environment automatic update facility. For more details, see the Importing a Module into HOPEX chapter in the HOPEX Administration - Supervisor guide.Accessing the list of Cloud Services
To access the list of elements concerning the Cloud services from the Deployment navigation pane:
1. Select Cloud Service Catalogs.
2. Unfold the Vendor Catalog folder.
The list of Cloud Service Catalogs appears in the edit area.
3. Expand the folder of a vendor catalog.
The following folders provide access to different elements:
• Service Cloud : provides access to the Cloud services of the catalog.
• Technical Functionality map: consolidates the set of technical functionalities covered by the Cloud services of the catalog.
For more details on functionalities, see Describing functionalities with HOPEX IT Architecture.• Publishing Vendor: with HOPEX, a vendor is represented by an org-unit.

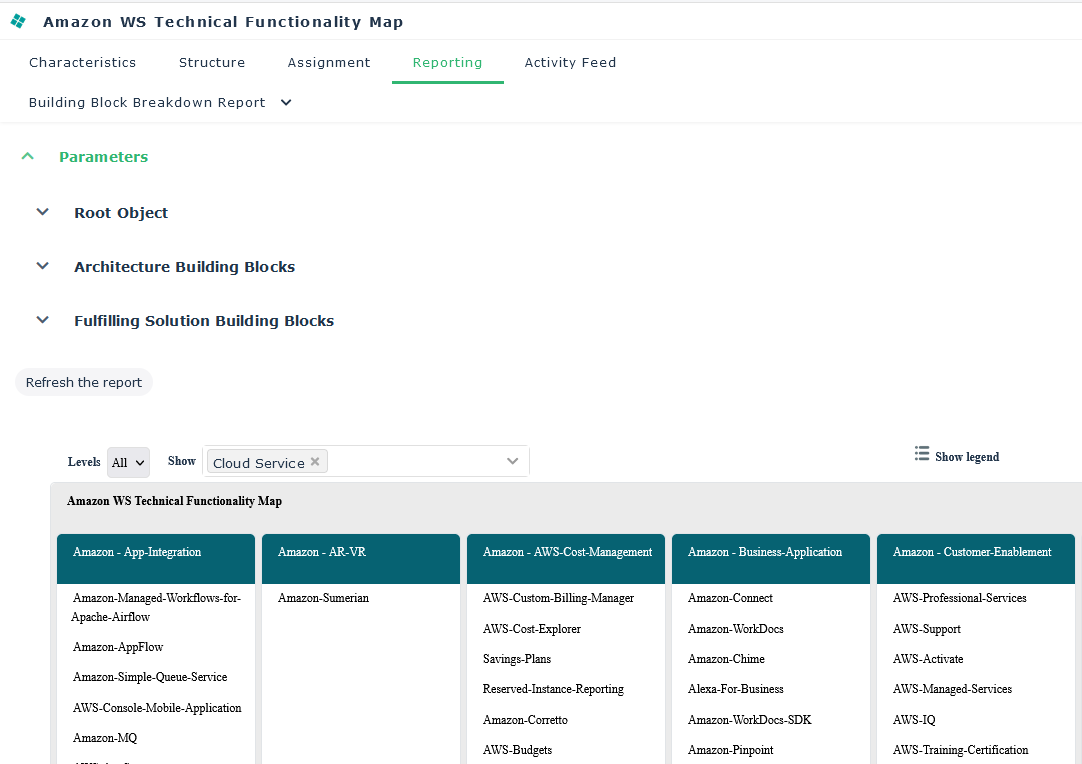

To view the functional coverage of the Cloud services connected to the Technical Functionality map:
1. Select the technical functionality map of the catalog that interests you.
2. Open the Reporting > Building Block Breakdown Report property page.
3. Select Cloud Service in the Show field.
Cloud Service properties
The Characteristics property page of a Cloud service provides access to:
• the Name,
• the Service Type,
• the Description text,
• the Fulfillments section that provides access to the technical functionalities covrered by the Cloud Service.
For more details on a component fulfillment, see Describing the fulfillment of a Functionality.• the Using Application Deployment Architecture section that provides a tree of all the application architectures using the Cloud service through a deployable application package component.
For more details on the use of Cloud services by a deployable application package, see Describing a Deployable Application Package.
