Concept Properties
Concept Properties are used to define the characteristics associated with a concept.

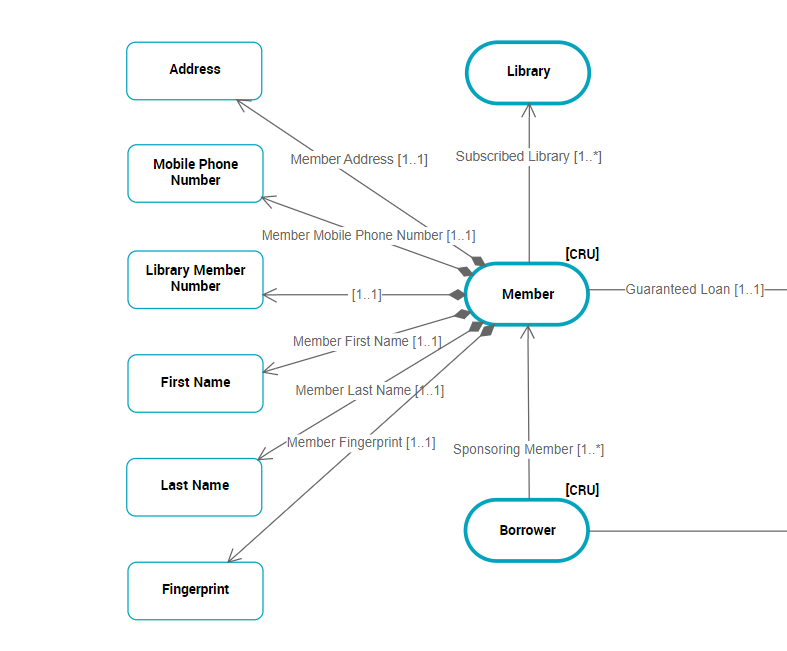

For example, a person is associated with a mandatory and unique postal address, possibly an email address and one or more telephone numbers.
A Concept Property may itself be connected to other Concept Properties.
For example, the postal address is defined using the name of the street and the town.
Creating a Concept Property
Creating a Concept Property
To create a Concept Property:
1. In the concept diagram associated with the concept domain click the Concept Property icon of the insert toolbar.
2. Click in the diagram.
3. Indicate the name of the Concept Property and click Add.
Connecting a Concept Property to a concept
The link between a Concept and a Concept Property is described by a Sub-Property that can, if necessary, be associated with a term.
A sub-property is used to specify the relationship between a concept and a concept property.Connecting two Concept Properties
The link between Concept Properties is described by a Concept Property Component that can, if necessary, be associated with a term.
A concept property component enables specification of the relationship between two concept properties.Creating a Computed Concept Property
