4. Communications and Protocols
4.1. Overview
The elements that compose the architecture interact with each other's using:
• HTTP(S) for all web interaction and across server's interaction.
• Socket IP across the modules within the same server

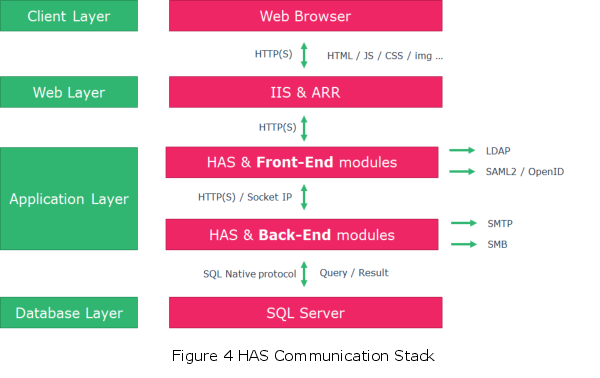

The High-level communication stack is summarized by the following schema:

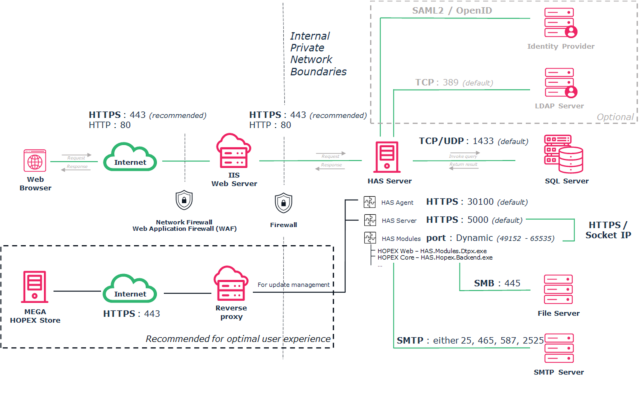

The full schema of communications and protocols used is shown below:
4.2. Detailed protocols and ports needed
4.2.1. List of ports
Protocol | Port(1) | Network Bandwidth(2) | Latency(2) | |
|---|---|---|---|---|
Web browser | HTTP HTTPS | 80 443 (recommended) | 60 kbits/s average 512 kbits/s peak | 100Ms |
IIS Web Server | HTTP HTTPS | 80 443 (recommended) | 1 Gbit/s | |
HAS Instance Manager | HTTPS | 30100 (To be opened in cluster deployment) | 1 Gbit/s | |
HAS Server | HTTPS | 5000 (to be opened if IIS is on another server or If cluster deployment) | 1 Gbit/s | |
HAS Modules(3) | HTTPS | 49152 – 65535 (Internal port - not to be opened) | 1 Gbit/s | |
HAS Module HOPEX Back-End(3) | Socket IP | 49152 – 65535 (Internal port - not to be opened) | 1 Gbit/s | 1 Ms |
File Server | SMB | 445 | 1 Gbit/s | 1 Ms |
SQL Server (Native client) | TCP/UDP | 1433 | 1 Gbit/s | 1 Ms |
SMTP Server | SMTP | 25, 465, 587, 2525 | 1 Gbit/s | 1 Ms |
LDAP Server | TCP | 389 | ||
HOPEX Store | HTTPS | 443 | 1 Gbit/s | |
HOPEX Back-End to subsysctl.com(4) | HTTP | 80 |
(1) Port number may vary depending on IT policies. Given values are the default one.
(2) Recommended values for optimal performance
(3) The Dynamic port range used between HAS Server and the module is used only within the Server (localhost). No communication across servers is done with this port range. For more information: https://support.microsoft.com/en-us/help/929851/the-default-dynamic-port-range-for-tcp-ip-has-changed-in-windows-vista
(4) One of the components embedded in HOPEX invoke subsysctl.com to retrieve 4 bytes from this site for license validation and expected to take a fraction of a second. Not needeed since V5CP5 HF16, V5CP6 HF6 , V5CP7.
4.2.2. Communication flow for each port
Here is the port used between servers:
Server source | Port | Server target |
|---|---|---|
Web Browser | 80 or 443 | IIS |
IIS | 5000 | HAS Server |
HAS Server (internal calls) | 49152 – 65535 (Windows Dynamic port range) | HAS Server (internal calls) |
HAS Server 1 (Cluster node) | 30100 5000 | HAS Server 2 (Cluster node) |
HAS Server … (Cluster node) | 30100 5000 | HAS Server ... (Cluster node) |
HAS Server | 1433 | SQL Server |
HAS Server | 445 | File Server |
HAS Server | 25 | SMTP Server |
HAS Server | 389 | LDAP Server |
HAS Server | 443 | HOPEX Store |
HAS Server | 443 | IIS |

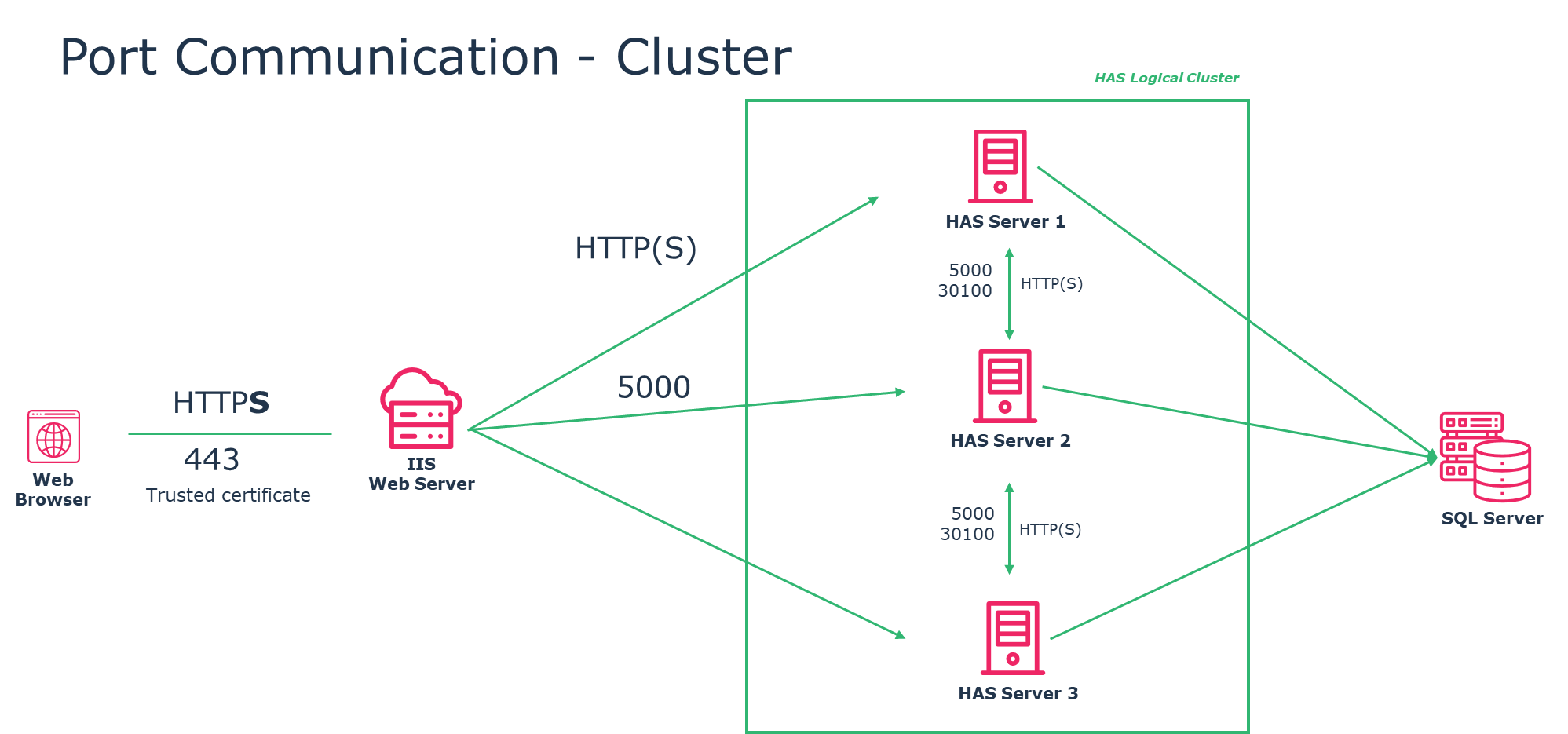

For cluster deployment apply the rule for each node of the cluster :
