Logical and Application Data Areas
Logical and application data areas are used to define a logical data structure made up of classes and class views.
• The logical data area is used to describe data stores (internal or external) of logical application systems.
• The application data area is used to describe the data stores of software (Application system, Application, Application service or Micro Service).
For more details on how to use data areas in an application architecture, see Modeling Technical and Functional Architectures.Both are owned by a package and can reference objects held in other packages.
You can define the access mode (CRUD) to the objects referenced by a data area by integrating them as components of the data area.
A corresponding physical structure can be defined via a physical data area. It is made up of tables and table views. See Database and Physical Data.Creating a logical data area
To create a logical data area:
1. Click the navigation menu then Data Architecture > Logical Data Assets.
2. In the edit area, click Logical Data Areas.
The list of logical data areas appears.
3. Click the New button.
The data area appears in the list.
The Data Area Diagram
Logical and application data areas can be described by a diagram.
A data area diagram is a structure diagram which defines classes and their relationships in a Whole/Part formalism in connection with the subject of the data area described.
You can connect one or more data area diagrams to a data area, according to what you want to describe.

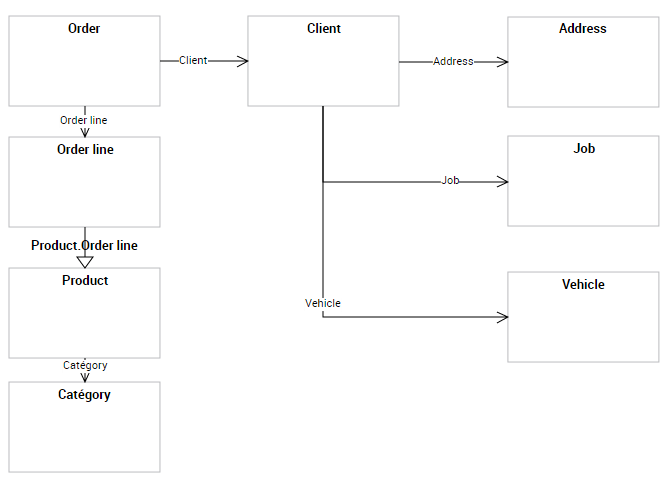

Example of diagram
The following data area diagram represents a data structure relating to Orders; it describes classes and their relationships in a Whole/Part formalism.
Creating a Logical Data Area Diagram
To create a data area diagram from a logical data area:
Right-click on the logical data area and select New > Data Area Diagram.Adding an object to the diagram
In the data area diagram, you can add a new object or connect an existing object.
The objects visible in a data diagram are not automatically linked to the data area. A command allows you to define the objects as components of the area. See Adding a component to a Data Area.
Adding a class
To add a new class to a diagram:
1. In the diagram insert toolbar, click Class, then click in the diagram.
The Add A Class dialog box appears.
2. Enter the name of the class and click Add.
Add a data view
To add a new data view to a diagram:
1. In the diagram insert toolbar, click Data View, then click in the diagram.
The Add Data View dialog box appears.
2. Enter the name of the data view and click Add.
3. The editor view appears. It is used to define the components of the view. See Creating a logical data view.
Adding a component to a Data Area
You can connect objects to a data area through components. A component references an object (class or class view) and defines the type of access to the object in question (read-only, modification, deletion, etc.).
The data area is attached to the package; objects directly created from components are automatically connected to the package of the data area.
You can create a component from an object in the diagram or using the properties of the data area.
To create a component from an object of the data area diagram:
In the diagram, right-click the object in question and select Add to (name of the data area).The name of the component created appears in the properties of the data area. By default it has the name of the object that it references.

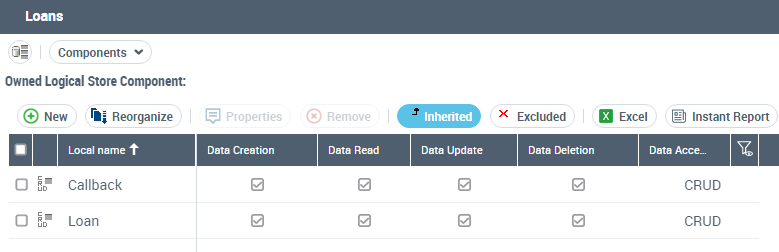

Defining the access mode to the referenced object
On the component, you can define the access mode to the object referenced (creation, read-only, deletion, etc.).
To define the access mode to the object in the data area:
1. Open the properties of the data area.
2. Click the drop-down list then Components.
The list of components of the data area appears.
3. Select the component and select the check boxes that correspond to the types of access in question (Creation, Read-only, etc.).
