Customizing the Display of a Report Graphic
You can customize a graphic in your report at the following levels:
• chapter content
• graphic style in the chapter
• of the style of a series in the chapter
• of the style of the chapter for exporting
The values modified locally override the global values defined for all reports.You can reinitialize the values configured by default at the level of:
• the parameter
• the entire chapter
You can add comments:
• at the report level
• at the report chapter level
Updating the content of a graphic of a report chapter
You can, for example:

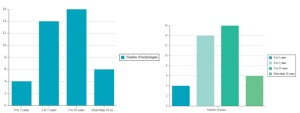

• reverse the display of the series
• show/hide the percentage values in the bars.
• add a title on the horizontal and/or vertical axis
To modify the report content:
1. Edit the report.
See Editing a Report.2. In the report page, click Edit style parameter values
and select All Series.
and select All Series.The edit pane appears.
3. In the Content section, modify the parameters concerned.
To reset the values, click Reset Parameter Values
. Attention: the style parameter values in the report chapter are also reinitialized.4. Click Apply.
Your modifications are immediately taken into account in the report.
If the modifications do not appear automatically, click
or see Expanding a Report Chapter Automatically on Opening.Updating the font of a graphic of a report chapter
You can, for example:
• modify the color and the size of the font
• add a title to the graphic
To update the font of a graphic of a report chapter
1. Edit the report.
See Editing a Report.2. In the report page, click Edit style parameter values
and select All Series.
and select All Series.The edit pane appears to the right.
3. In the Style section, modify the parameters concerned.
To reinitialize the value of a parameter, delete the value that you entered.To reset all values, click Reset Parameters Values . Attention: all parameter values in the report are also reinitialized.4. Click Apply.
Your modifications are immediately taken into account in the report.
If the modifications do not appear automatically, click
or see Expanding a Report Chapter Automatically on Opening.Modifying the bubble style in a bubble graph
You can, for example:
• modify the bubble color

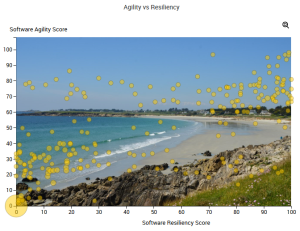

• add a background image (.png format)
You can add a .png format image, which is saved in HOPEX.
• remove the background grid
To modify the bubble style in a bubble graph:
1. Edit the report.
See Editing a Report.2. In the report page, click Edit style parameter values
and select All Series.
and select All Series.The edit pane appears to the right.
3. In the Style section, modify the parameters concerned.
To reinitialize the value of a parameter, delete the value that you entered.To reset all values, click Reset Parameters Values . Attention: all parameter values in the report are also reinitialized.4. Click Apply.
Your modifications are immediately taken into account in the report.
If the modifications do not appear automatically, click
.Updating the style of a graphic of a report chapter
You can, for example:
• modify the color palette of the series
By default, if the series contains text in the chart, the text color is automatically adapted to the color of the series to be readable. If the text color is defined, it is applied irrespective of the color of the series.• add a horizontal and/or vertical grid

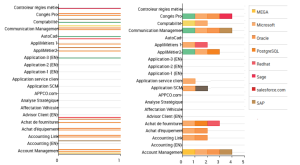

• stack the bars

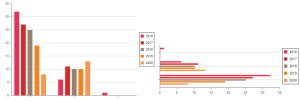

• reverse the bar direction (vertical or horizontal)
To modify the style of a report chapter:
1. Edit the report.
See Editing a Report.2. In the report page, click Edit style parameter values
and select All Series.
and select All Series.The edit pane appears to the right.
3. In the Chart Style section, modify the parameters concerned.
To reinitialize the value of a parameter, delete the value that you entered.To reset all values, click Reset Parameters Values . Attention: all parameter values in the report are also reinitialized.4. Click Apply.
Your modifications are immediately taken into account in the report.
If the modifications do not appear automatically, click
or see Expanding a Report Chapter Automatically on Opening.Modifying the style of labels
You can, for example:
• hide the axes
• define the maximum value of axes
• truncate the labels

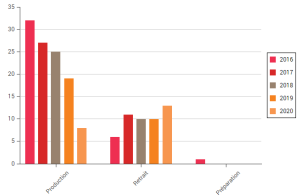

• modify the display angle of the lower label text (in degrees)
Default value: 0°, the text is horizontal.
To modify the style of the labels of a report chapter:
1. Edit the report.
See Editing a Report.2. In the report page, click Edit style parameter values
and select All Series.
and select All Series.The edit pane appears to the right.
3. In the Labels Style section, modify the parameters concerned.
To reinitialize the value of a parameter, delete the value that you entered.To reset all values, click Reset Parameters Values . Attention: all parameter values in the report are also reinitialized.4. Click Apply.
Your modifications are immediately taken into account in the report.
If the modifications do not appear automatically, click
or see Expanding a Report Chapter Automatically on Opening.Modifying the legend style
You can, for example:
• hide/show the legend

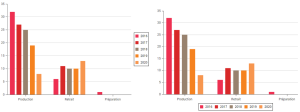

Default value: yes (display)• modify the position of the legend (on the bottom or right)
Default value: to the right
To modify the legend style of a report chapter:
1. Edit the report.
See Editing a Report.2. In the report page, click Edit style parameter values and select All Series.
and select All Series.The edit pane appears to the right.
3. In the Legend Style section, modify the parameters concerned
To reset all values, click Reset Parameters Values . Attention: all parameter values in the report are also reinitialized.4. Click Apply.
Your modifications are immediately taken into account in the report.
If the modifications do not appear automatically, click
or modify the configuration (see Expanding a Report Chapter Automatically on Opening).Modifying the style of parameters in a report chapter
You can:

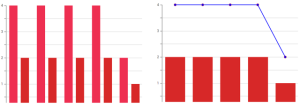

• (for a bar chart) modify the display style (as bars or as lines)
Default value: no (as bars)
• modify the series color
To modify the parameter style of a series in a report chapter:
1. Edit the report.
See Editing a Report.2. In the report page, click Edit the Style Parameters Values and select the series that you want to modify.
and select the series that you want to modify.The edit pane of the selected series appears to the right.
3. In the pane of the selected series, in the Graphic Style section, select the parameter values of the series that you want to modify.
4. Click Apply.
Attention: the values defined locally replace the global values defined for all reports.Modifying the style for export
You can:
• define the maximum value of axes
• display a percentage in the bars.
To modify the style of a report chapter for export:
1. Edit the report.
See Editing a Report.2. In the report page, click Edit style parameter values
and select All Series.
and select All Series.The edit pane appears to the right.
3. In the Style for Export section, enter the required fields.
4. Click Apply.
