Viewing Diagrams From an Object
You can view diagrams:
• which describe the current object.
• which contain the current object.
To preview diagrams containing the selected object:
Right-click an object and in its pop-up menu click Preview.To view diagrams containing the selected object:
Right-click the object and select Diagrams Containing Object.A window appears presenting diagram previews.

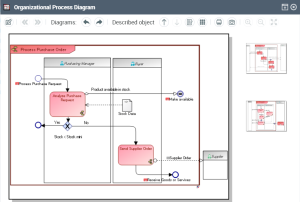

A specific toolbar appears at the top of the diagram.
Buttons allow you to display the list of diagrams containing or describing an object. The mouse wheel also enables navigation between diagrams.
Using the toolbar of a diagram preview
Below are the main icons available (in HOPEX Web Front-End).
Unavailable icons are grayed.Icon | Description |
|---|---|
 | Edit this diagram Provides access to the diagram properties |
 | Refresh this diagram Allows you to refresh the diagram, for example if some components have been removed from the repository. |
 | Diagrams containing described object Provides access to the diagram properties |
 | Diagrams describing described object Provides access to the diagram properties |
 | Properties of the diagram Provides access to the diagram properties |
 | Print diagram Display diagram as a PDF file, enabling printing |
 | Saving an image under Used to save the diagram image |
 | Zoom in () |
 | Zoom out () |
 | See All Return to the original size of the image. The mouse wheel also allows you to zoom in and out. |
Using the pie menu in a diagram preview
Objects of diagrams are "active".
Select an object in the preview diagram. A pie menu appears on the object.
With this menu you can:
• Access object properties (icon
).
). • Generate a report on the object (icon
).
).• Access the diagram describing the object (icon
).
).• Access diagrams containing the object (icon
).
).Unavailable options are grayed.
