If a problem occurs during license installation, see the 'FAQs and troubleshooting' section of this document. For additional assistance, contact the appropriate Support Center.

Must license installation consists in:

• Installing the Must license file.

• Configuring the license folder in the HOPEX installation.

Must license update consists in:

• Verifying that no user is connected to the former license.

• Removing the former license.

• Resetting the configuration files

• Installing the updated license.

Choosing a machine to host the Must license folder

List of requirements:

• No specific hardware requirements (CPU, Ram). However, the machine hosting the Must license must be an efficient file server.

• The machine hosting the Must license must be available for all users running the HOPEX Kernel.

List of recommendations:

• The machine must be an efficient file server:

o Select top quality components for disks and disk controller cards.

o During installation and configuration, choose all options that favor file service performance.

• Choose an NTFS disk.

• Choose a DFS-based folder for the license folder

Creating a Must license folder

If you do not have the technical skills or the authorization required for this step, contact you system administrator.

Steps:

• Choose a machine to host the Must licenses.

See above.

• Create a shared folder on this machine.

This will be the license folder. See requirements below.

• Configure this share folder.

See requirements below.

Folder sharing requirements:

• The license folder must be accessible as a UNC address, meaning a shared folder with one unique address on the network.

• Examples of authorized sharing:

\\Server001\Apps\Licenses

\\Domain01\Applications\HOPEX\Licenses (DFS)

\\Server001.Domain01.com\Licenses (FQDN)

• Examples of unauthorized sharing:

\\Server002\c$\ HOPEX\Licenses (administrative share)

M:\Licenses (network letter)

License folder requirements:

• The license folder must be accessible as a UNC with full control to all Windows users that are allowed:

o To configure a Must license.

o To run HOPEX Kernel programs with a Must license.

• If you want to configure smarter permissions, consult the 'FAQs and troubleshooting' section of this document.

Sending the UNC address of the license folder

Prerequisite:

• Create a license folder.

No specific utility is provided for this step: you can use Windows explorer.

Example:

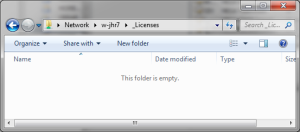

• Navigate to the license folder.

• Select the folder path in the address bar.

• Copy the folder path and send it to MEGA Sales Administration when requested.

Installing a Must license file

Prerequisites:

• Get a Must license file.

• Identify the license folder. This folder must match the UNC on which the HOPEX license file is locked.

• Verify that this folder exists and is shared (Windows permissions) for every Windows user that can run HOPEX Kernel though a Front-end.

Procedure:

1. With Windows explorer, select the folder matching the UNC.

2. Copy the .must file send by MEGA Sales Administration to this folder.

Results:

• The Must license is installed.

Configuring the license folder in the HOPEX installation (direct reference)

Prerequisites:

• A Must license is installed in the license folder.

• A target HOPEX installation is available.

Procedure:

1. Run the Must license utility.

2. In the menu, select File > ‘Update config'.

3. Click the 'Browse' button.

4. Select the 'CFG' folder of the HOPEX installation.

Results:

• The Megasite.ini configuration file is updated. A section [Must licence] is created or updated. Example:

[Must licence]

Path=\\server001\Apps\Licenses

• It is possible to run the HOPEX installation on behalf of this Must license.

Configuring the license folder in the shared configuration folder (indirect reference)

Prerequisites:

• A Must license is installed in the license folder.

• A shared configuration folder contains a file Megasite.ini.

• A HOPEX installation is part of a cluster.

Procedure:

1. Browse the shared configuration folder.

2. Edit the file Megasite.ini.

3. Add a section [Must licence] and a variable 'Path'. Example:

[Must licence]

Path=\\server001\Apps\Licenses

Results:

• In the shared configuration folder, the Megasite.ini configuration file is updated. A section [Must licence] is created or updated.

• It is possible that each workstation of the cluster shares the same license.

Uninstalling the Must license

Prerequisites:

• Identify the Must license file to be uninstalled.

• Identify the license folder. This folder must match the UNC on which the HOPEX license file is locked.

• Verify with the Must license utility that no user is currently logged on to the license to be uninstalled.

Procedure:

1. With Windows explorer, select the folder matching the UNC.

2. Remove the .must file from this folder.

Results:

• The Must license is uninstalled.

Resetting the configuration files

When replacing a Must license with a license having the same name and UNC, it is recommended to reset the Must license configuration.
Otherwise, the license may not run correctly in particular if the number of token has become lower for a product. A consequence it will be necessary to specify again the list of possible users.

Prerequisites:

• Identify the Must license file to be uninstalled.

• Decided whether you reset the configuration

• Verify with the Must license utility that no user is currently logged on to the license to be uninstalled.

Procedure:

1. Run the licensing.exe utility as Administrator.

2. Select the server path where the license is saved.

3. Select the license in the left tree.

4. Right-click > Reset License configuration.

5. Confirm reset.

This will:

• Delete the possible user configuration.

• Delete the token files.

• Delete the file Router.ini

Converting licence

When upgrading from HOPEX V1R2-V1R3 CP8.0 or lower CP, it is required to convert the file Router.ini to a new format. Otherwise, various issues can occur.

Pre-requisites:

• Stop all activity regarding HOPEX Windows Front-End and HOPEX Web Front-End.

Procedure:

1. Run the licensing.exe utility as Administrator.

2. Click on the menu Administration > Convert.

3. Click the button Refresh All.

This will:

• Archive the file configuration file 'Router.ini as 'Router.bak'.

• Update the file 'Router.ini' to the new format:

o A version tag is added (section [Router], version=x).

o The reference to the domain (ex: @Domain01) is removed.

o Duplicate line are removed.

• Technical files are renamed.

o The reference to the domain (ex: @Domain01) is removed.

Example:

Router.ini (before conversion)	Router.ini (after conversion)
[User/Licence] U001@Domain01=Licence-T0001 U001@Domain02=Licence-T0002 U002@Domain01=Licence-T0001	[User/Licence] U001=Licence-T0001 U002=Licence-T0001 [Router] Version=2

Configure file permissions

At runtime, files will be created dynamically in a hidden subfolder in the licence folder.

It is necessary to configure file permissions so that execution is correct.

It is recommended to grant the permission 'Modify' for the licence folder (ex: \\Server001\Apps\Licenses and its subfolders).

The list of windows users varies with the front-end:

Front-end	Users to be configured
Web Front-end	Only the service account for the HOPEX (IIS) web application should be configured (ex: D01\hopex). Contact the person in charge of installing HOPEX Web Front-end
Windows Front-end	Each end-user can be configured (D01\u0001, D01\u0002…). It is therefore recommended that a group is created for users of the Windows Front-end.
