Reporting Datamart Description
Structure
The Reporting Datamart structure is initialized with the RDBMS database standard structure.
Tables are created and fed with the HOPEX repository and SystemDb repository data. If there is no data to be exported to a table, this table remains empty, so that the Reporting Datamart structure is always consistent. This ensure the user that any of his queries run properly on the Reporting Datamart.
Reporting Datamart table and column names are in English language.
Reporting Datamart data is stored in the language selected at Reporting Datamart creation.
SQL database-based Reporting Datamart

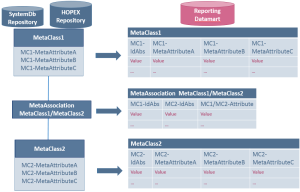

For an SQL database-based Reporting Datamart the rule is as follows:
• an SQL Database Table is created for each HOPEX MetaClass
• an SQL Database Table is created for each HOPEX MetaAssociation
• an SQL Database Column is added in the SQL database Table for each HOPEX MetaAttribute
Data
HOPEX repository
Most of the HOPEX repository data is exported to the Reporting Datamart, including:
• MetaClasses, MetaAssociations, and MetaAttributes
• diagrams exported in BLOB column of their object
• calculated MetaAttributes
• comments, in html format (instead of RTF format)
Logs and object history are not exported.
SystemDb repository
Few data is exported from the SystemDb repository:
• Logins
• Persons (system)
• Person groups
Content
With the Reporting Datamart, data is filtered so that the data amount is reduced to the data needed only:
• Only the last dispatched version of each object is kept in the Reporting Datamart.
• Data is filtered at Reporting Datamart creation according to a user rights (confidentiality) and his profile permissions.
• Data name is displayed (not Idabs) for an easy reading.
• Data is in the Reporting Datamart language.
Note: if you need the Reporting Datamart data in multiple languages, you need to create as many Reporting Datamart as languages needed.
Excluding MetaAttribute values from the Reporting Datamart
In some cases, you might not need to export some specific MetaAttribute values in your Reporting Datamart.
To exclude MetaAttribute values from the Reporting Datamart:
1) In HOPEX, access the MetaAttribute properties.
2) Click the Characteristics tab, then Advanced subtab.
3) Click the Extended Properties field arrow and select Exclude from Reporting Datamart.
