Information Structure Viewpoint

The Information Structure viewpoint is comparable to the traditional information models created in the development of almost any information system. It shows the structure of the information used in the enterprise or in a specific business process or application, in terms of data types or (object-oriented) class structures. Furthermore, it may show how the information at the business level (business objects) is represented at the application level in the form of the data structures used there (data objects), and how these are then mapped onto the underlying infrastructure; e.g., by means of a database schema (artifact).
Concepts and Relations

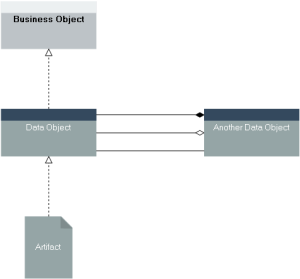

The ArchiMate concepts used in an Information Structure viewpoint Diagram and their relations are described below.
This viewpoint describes an Information Model which can describe the content of an Information Store.
+ In this version of HOPEX Archimate Meaning and Representation are not implemented.
Example Presentation

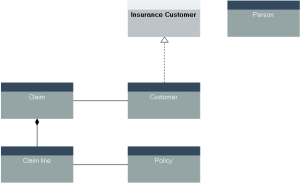

Example of Information Structure viewpoint diagram
