Service Interaction Matrix

Report presentation
Exchange details
Report parameters
This report lists interactions used in agents configured in the report subject.
Report presentation

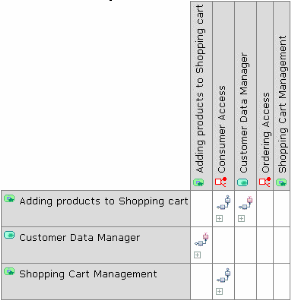

The objects in rows play the role of consumer in the interactions ; they ask for services.
*The objects in line are directly, or indirectly, linked to agents that are defined in the report parameters.
*Only objects (and sub objects) that have a defined interaction point playing the "consumer" role are displayed in the report.
The objects in columns play the role of supplier in the interactions ; they provide services.
*The objects in columns are directly, or indirectly, linked to agents that are defined in the report parameters.
*Only objects (and sub objects) that have a defined interaction point playing the "supplier" role are displayed in the report.
*For more details on interaction points, see "Defining an Element Interaction Point".

Exchange details
If you click the button in a cell in the matrix, you obtain the details of the interaction connecting the two objects.
Information is presented in the following order:
• the interaction connected to the "Consumer" object described successively by:
• object representing the context: object containing the "consumer" object and the interaction.
• interaction used by the "consumer" object to send its request.
• interaction point used by the "consumer" object to send its request.
• "consumer" object (that is also on line).
• the interaction connected to the "Supplier" object
• object representing the context: object containing the "consumer" object and the interaction.
• interaction used by the "supplier" object to receive the request.
• interaction point used by the "supplier" object to receive the request.
• "supplier" object (that is also on column).
Report parameters
This consists of defining report input data.
Parameter
Parameter type
Constraints
Agent
Org Unit
Applications
Application System
Logical application architecture
Logical application
Business function
At least one subject mandatory. Agents are cumulated
Filtering agent part
Org Unit
Applications
Application System
Logical application architecture
Logical application
Business function
Not mandatory
Filtering agent
Org Unit
Applications
Application System
Logical application architecture
Logical application
Business function
Not mandatory
