Functional process example

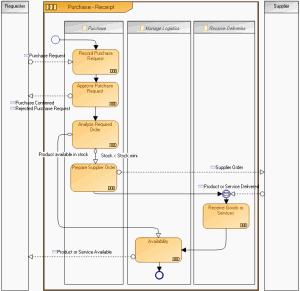

The following diagram presents a functional process example:

The purchase request is recorded and must then be approved. The requester is informed of approval or rejection of the request. If the request is validated, an analysis of the required order is carried out.

If stock is lower than a given threshold, an order is prepared and sent to the supplier for resupply.

If the product is available, or as soon as it is received from the supplier, it is made available to the requester.

In this example, the business functions concerned are represented in columns.

A business function is a skill or grouping of skills of interest for the enterprise.

In the organization previously presented, three org-units: purchasing assistant, purchasing manager and buyer, systematically participate to execute the first four steps: record and approve the request, analyze and send the order.

Optimization of the organized process "Process Purchase Requests" has saved one step: when amount of the order is not significant, the purchasing assistant can himself approve or refuse the purchase request.

In the case of urgent orders, you can again save steps by authorizing the purchasing assistant to send the order when the amount is not significant.

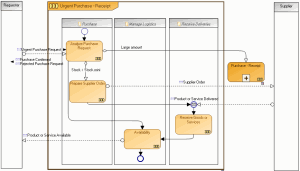

We obtain the following functional process for processing of urgent orders:

The first step consists of analyzing the purchase request. If the total amount is large, normal processing is carried out.

Otherwise, the availability request and a restock request are sent, if necessary. Continuation of this functional process is identical to the previous one: when the order has been received, it is made available to the requester.

We can define a new organizational process for processing of urgent purchase requests, in which responsibilities of the purchasing assistant are extended.

"Process Urgent Purchase Request" Organizational Process

The purchasing assistant begins by analyzing the purchase request. If the amount is large, the normal process purchase request process is implemented. If the product is available, the assistant sends the availability request.

If not, the assistant sends a purchase order to the supplier. The rest of the processing is carried out within the framework of the normal "Process Purchase Request" organizational process.

To analyze the purchase request and send the order, the purchasing assistant requires data on stock levels. He will have access to the "Equipment Purchasing" application.

This new variation of the organizational process enables faster processing for urgent orders. It demands higher qualifications of the purchasing assistant who has more responsibilities.

You can show systems used by operations by selecting "System used" in the window opened from the "Views and Details" button

A system used during the execution of a step of a process represents what is necessary to realize this step. It can be an application or an IT service, or any other non IT resource, or more generally a functionality.
