Specifying a tree entry structure

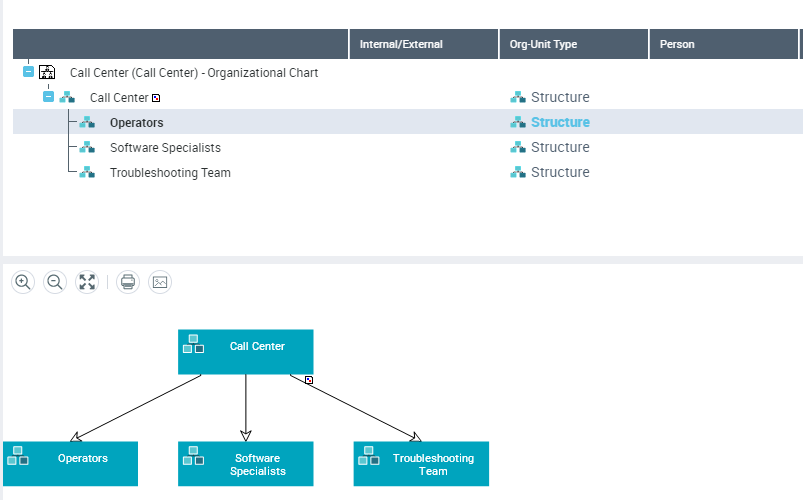

A tree entry structure is presented for an Organizational Chart, for example. A tree table is used to specify the diagram components.
For that type of diagram, you have to specify:
• the structure of the tree represented,
• the content of columns for a given MetaClass and display order.
• MetaTree and MetaList: used to describe the fields of a tree table entry diagram.
• The structure of the tree is represented by a MetaTree connected the DiagTabDefinition.
• The content of the columns is represented by a MetaList connected the DiagTabDefinition.

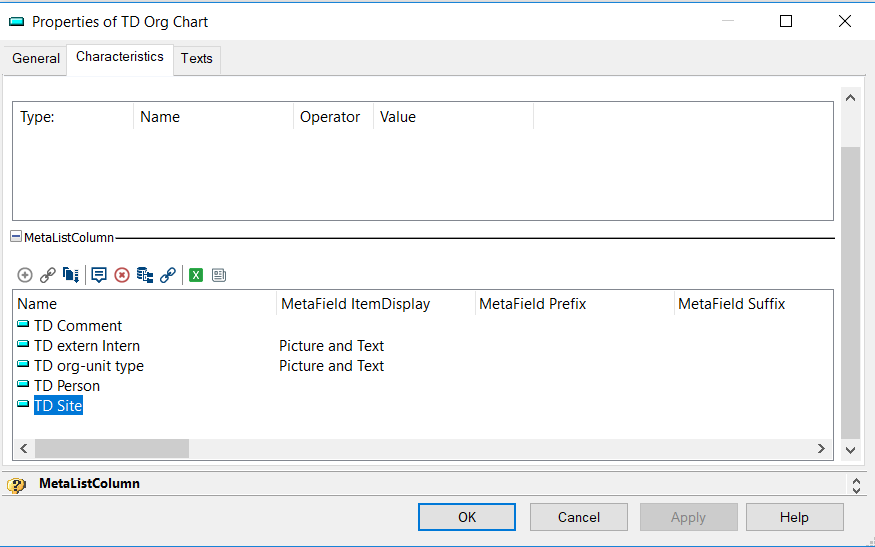

• The columns of the list , which are specified by MetaField in the MetaList Characteristics property page.
