The NSV-2c Report Template
The NSV-2c report template synthesizes information about the communication channels considered as connectivity clusters.
The parameters taken into account for the report are:
• The Architecture to be analyzed.
• The Subset parameter. This parameter is optional and can be set with a subsets of the applications, artifacts, communication channels and resource architectures used in the architecture. If this parameter is not set, all these aforementioned architecture objects are taken into account in the analysis.
The NSV-2c System Connectivity Clusters Chapter
The system Connectivity Clusters chapter displays a list of all the communication channels that are considered as connectivity clusters in the architecture.
For each cluster, the name, the comment, the system owning the cluster and the connected sub-systems are listed.

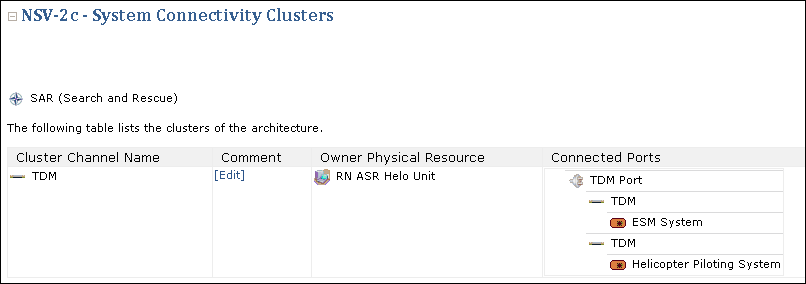

Example of an NSV-2c System Connectivity Clusters Chapter
