Designing Organizations
The root org-units of the organization are created from the NAF navigation tree.
A global organization chart can be created to graphically show the hierarchy of org-units. If the hierarchy is too complex to be shown in a simple diagram, sub organizational charts can be added from any sub org-unit. Org-units are linked by dependency links that can be tuned to express a hierarchical or functional dependency.
To create an org-unit from the NAF navigation tree:
1. From the architecture concerned expand Operational Views > NOV-4 - Organizational Relationship Chart.
2. Right-click the Root Org-Units folder and select New > Org-Unit.
3. In the dialog-box that appears, enter the name of the Org-unit.
4. Select the Org-Unit type:
• Company
• Institute
• Vendor
• Agency
• Organization
• Role
• Generic
• Post
The new Org-unit appears.

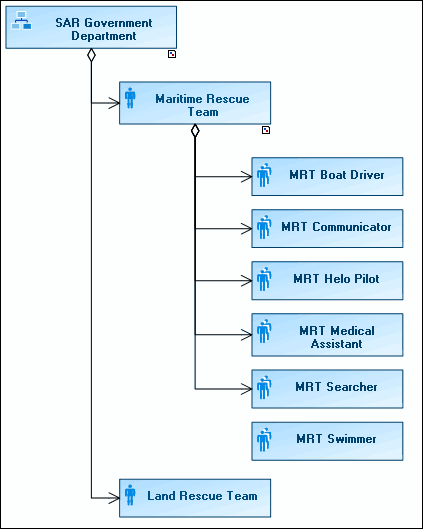

The figure below is an example of an organizational chart.
Example of Organizational-Unit Chart
