Modifying a Line Style
In a diagram, you can modify the style of each line.
You can also modify the style of several lines at once.
For each line, you can modify:
• its style:
• free or orthogonal
• closed: enables to draw an irregular polygon, which can be filled with a color or a pattern.
• perspective: enables to adjust the right angle in diagram with object in perspective.
• its appearance:
• curved or straight
• rounded or right angles
• simple or double
• weight
• dashed or solid
• its color
• its extremities:
• line ends covered or not by connected elements
• with or without shapes
• (with shape) each shape color
To modify a line:
1. (If need) To modify several lines at once, use the [Ctrl] key to select the lines.
2. Open the Aspect page.

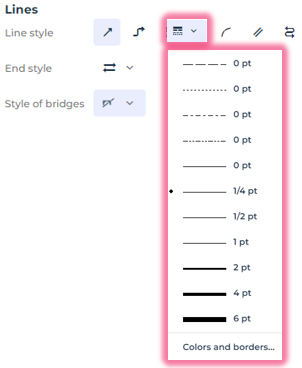

3. In the Lines section, use the drop-down lists to modify the line:
• its Style and Thickness
• its Extremities

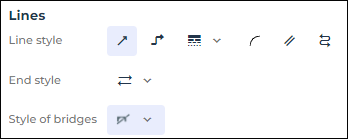

For more options, click Colors and Borders to access a more exhaustive menu.4. (If needed) Select
• Rounded angles
• Curve
• Double lines
Examples of lines
• Orthogonal line, rounded angles
• Perspective line, rounded angles, start style: empty diamond, end style: circle filled with orange
