Creating a Process Map diagram
You can create a Process Map diagram using two different modes.
• Graphical mode: with this mode, you can easily import in your diagram the Process Categories already created.
• Tabular mode: with this mode, you can easily add multiple new Process Categories in your diagram.
The user can choose the opening mode of a diagram if the option Choice of diagram opening mode is set to Ask the user through Main Menu > Settings > Options> Compatibility > Diagram. Creating a Process Map diagram in graphical mode
To create a Process Map diagram in graphical mode:
1. In the Process Map list, click the button Create Diagram
related to the selected Process Map.
related to the selected Process Map.The diagram creation window opens.
2. Select Process Map > Create diagram in graphical mode.

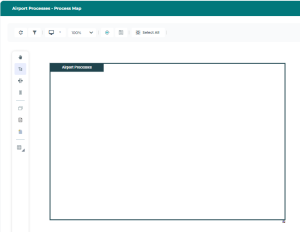

An empty Process Map diagram appears in graphical mode.
3. To complete the Process Map diagram, you can:
• Import existing Process Categories
• Add new Process Categories
To import existing Process Categories:
Click Add sub-categories
then Reorganize.
To add / connect Process Categories manually:
Click Process Category
For further information on adding objects in graphical mode Objects in a Diagram.Creating a Process Map diagram in tabular mode

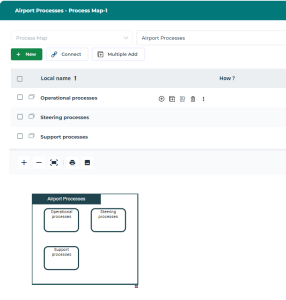

To create a Process Map diagram in tabular mode:
1. In the Process Map list, click the button Create Diagram related to the selected Process Map.
related to the selected Process Map.The diagram creation window opens.
2. Select Process Map > Create diagram in tabular mode.
The diagram creation window in tabular mode opens.
3. To complete the Process Map diagram, you can:
• Add one or several Process Categories with the New and Multiple Add buttons.
• Add an existing Process Category with the Connect button.
When you create a Process Category, it appears in the table (upper part of the screen) and in the diagram preview (bottom part of the screen).
For further information on diagram creation in tabular mode, see Diagrams in Tabular Entry Mode.
