Defining Required Architecture

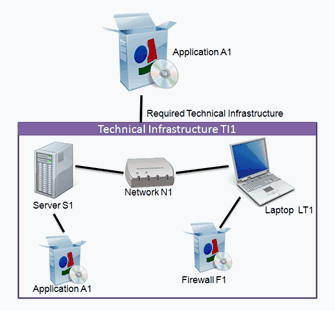

The following figure describes the technical infrastructure required for a given application. It also shows where the application is deployed in this infrastructure, and on which server it is hosted.
Specifying a required infrastructure not only enables listing of the elements required by an application, but can also position the application within this architecture.
To specify how an application should be deployed, you can use the concept of resource Architecture. To display objects linked to this model, you must select the Infrastructure Modeling Post 2009 SP2 option in MEGA Business Process and Architecture Modeling options.To create the technical infrastructure of an application:
Right-click the application and select New > Technical Infrastructure.You can then create the corresponding diagram.
