Data Domains
Data domains are used to define a logical data structure made up of classes and class views.
The application data domain is used to describe the data stores of software (Application system, Application, Application service or Micro Service).
For more details on how to use data domains in an application architecture, see Modeling Applications and System Architectures.Accessing Data Domains with HOPEX UAF
To access Data Domains:
1. From the navigation menu, select Resources > Information (Logical).
2. Click the Data Domains tab.
The list of Data Domains of the Enterprise is displayed.
The Data Domain Structure Diagram
A data domain structure diagram defines classes and their relationships in a Whole/Part formalism in connection with the subject of the data domain described.
You can connect one or more data domain diagrams to a data domain, according to what you want to describe.
Example of diagram

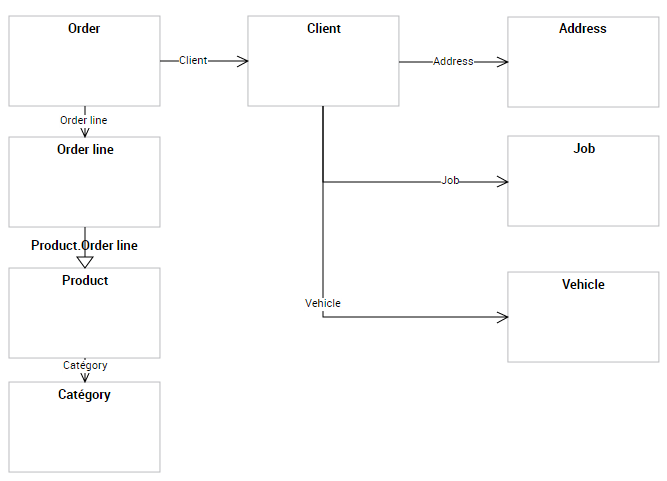

The following data domain diagram represents a data structure relating to Orders; it describes classes and their relationships in a Whole/Part formalism.
Data Domains Properties
