HOPEX for the ArchiMate® Framework solution is the implementation of the Open Group's ArchiMate® 3.1 Enterprise Architecture standard. See http://www.opengroup.org/archimate/.
ArchiMate® is a registered trademark of Open Group. This product is available if you have the HOPEX for the ArchiMate® Framework key and if you have imported corresponding the modules.
For more details viewpoints list see Pre-Requisites to HOPEX for the ArchiMate Framework in the HOPEX for the ArchiMate® Framework guide.Accessing functionalities of HOPEX for the ArchiMate® Framework
HOPEX for the ArchiMate® Framework solution provides a metamodel and a notation covering all the ArchiMate® standard Enterprise Architecture layers: Motivation, Strategy, Business, Application, Technology, Physical, and Implementation & Migration.
To access to the objects dedicated to the HOPEX for the ArchiMate® Framework solution facilties:

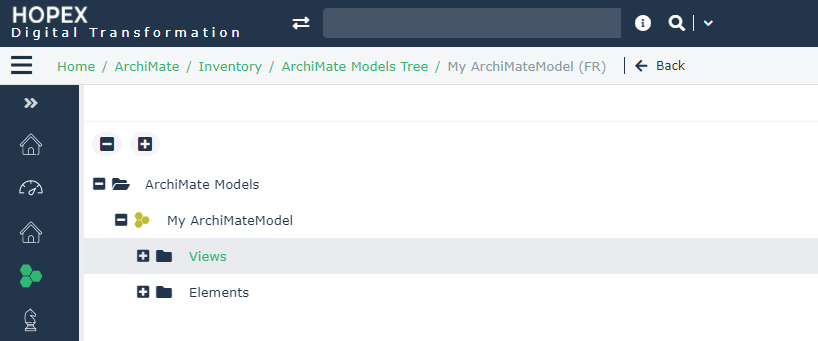

In the ArchiMate navigation pane, click Hierarchy.
For more information on ArchiMate models, see Starting with HOPEX for the ArchiMate Framework in the HOPEX for the ArchiMate® Framework guide.Accessing the HOPEX for the ArchiMate® Framework elements
HOPEX for the ArchiMate® Framework solution implementation also supports the viewpoints mechanism, so that the ArchiMate® diagram contents can be filtered according to a defined perspective; additional viewpoints can be defined. New viewpoints may also be defined.
To access the repository objects:

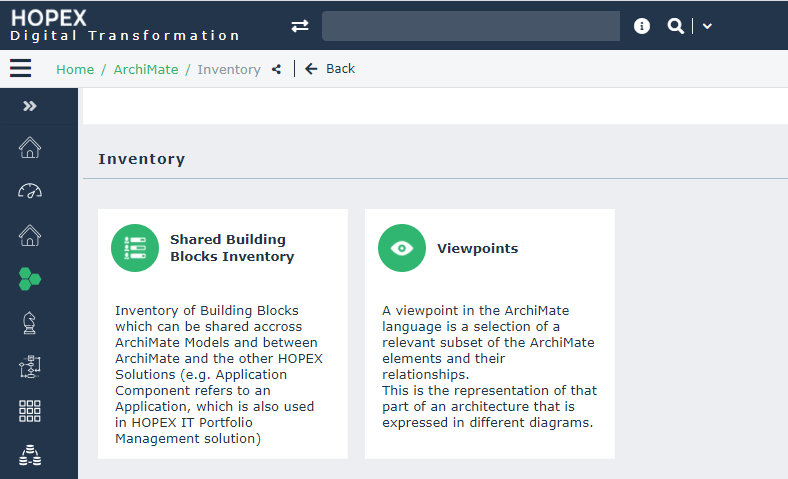

In the ArchiMate navigation pane, click Inventory.The tree of ArchiMate models tree is displayed.
• The Shared Building Blocks Inventory provides an access to the set of repository objects shared between HOPEX solutions and HOPEX for the ArchiMate® Framework.
For more details one these concepts list, see Concepts mapping in the HOPEX for the ArchiMate® Framework guide.• The Viewpoint tile allows you to access to the viewpoints list defined in the ArchiMate standard.
For more details viewpoints list see ArchiMate Layers and Relationships in the HOPEX for the ArchiMate® Framework guide.
