Application Exchange Density
This report displays the density of exchanges around an application in order to help defining application systems.
The lines display the fact that there is at least one content exchanged between two applications.
The color of the line indicates the number of exchanged contents.
• Gray: 1 or 2 contents,
• Green: between 3 and 5 contents,
• Orange: between 6 and 10 contents,
• Brown: between 11 and 15 contents,
• Red: more than 15 contents.

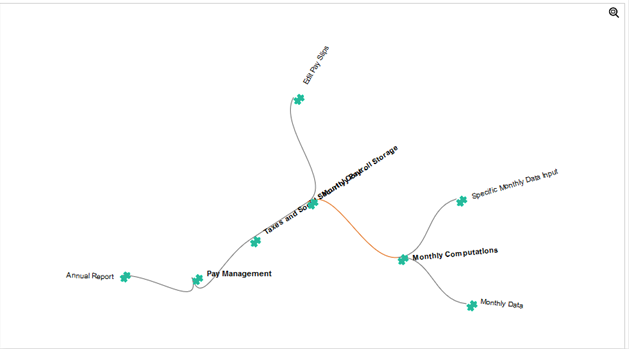

Report example
Report parameters
This consists of defining report input data.
Parameters
Parameter type
Constraints
Root object
Application system, Application or IT service
One object mandatory.
Depth
Integer
