"Logical to Physical" Synchronization Rules

Logical > physical synchronization: the application and logical data areas
Logical to Physical Synchronization: the Entities (or Classes)
General rule
Sub-entity
Abstract entity
Realized entity
Logical to Physical Synchronization: the Associations
Constraint associations (multiplicities: 0,1 or 1,1)
Constraint associations (multiplicities: 0,1 and 0,1)
Deadlocks
Non-constraint association
Association class
Logical to Physical Synchronization: the Parts (UML)
Example 1: None / *
Example 2: Aggregation / *
Example 3: Composition / 0..1

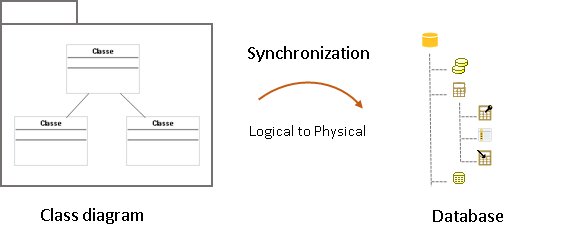

The following rules are applied for transforming class diagrams into relational formalism.
