Defining RACI responsibilities
Org-units displayed in a participant
The list of org-units displayed in the header of the shape of a participant groups the org-units declared in the participant's properties.
• Org-units attached to the participant but with a responsibility in the process or operations executed by the participant. The name of the org-units is followed by a letter corresponding to their responsibility. These org-units are declared in the properties of the participant.
For more details on org-units connected to a participant, see Creating a Participant.Defining the RACI of an org-unit for an operation or a process
To indicate the responsibility of an org-unit in an operation, for example:
1. In the operation Characteristics property page, expand the Actors section.
2. Click the Connect button.
3. In the dialog box that opens, select Candidate Org-Units (RACI) and click the Find button .
A dialog box proposes the list of org-units that execute the operation or the process via a participant.
An org-unit can be connected directly to an operation or process or indirectly via a participant. An RACI candidate org-unit is an org-unit assigned to a participant.4. Select the org-units that interest you and click Relier.
The org-units appear in the properties dialog box of the operation or process.
5. For each of these, in the RACI drop-down list, select a responsibility level from the four proposed.
• Consulted (C)
• Responsible (R)
• Responsible/Accountable (R/A)
• Informed (I)
• Accountable (A)
The selected responsibility level appears with an icon corresponding to context:
Icon | Meaning |
|---|---|
 | Indicates that responsibility is deduced from the participant. The icon appears when the selected org-unit is: - assigned to the participant, and - declared with Responsible responsibility (default responsibility). |
No icon | There is no icon when the selected org-unit is: - assigned to the participant, and - declared with responsibility other than Responsible (default responsibility). |
To indicate responsibility of each of the org-units attached to a participant in the different operations or organizational processes it executes:
1. Open the RACI property page of the participant.

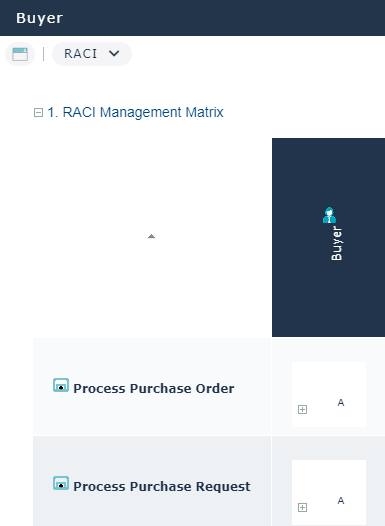

The analysis report is displayed carrying the letter representing the responsibility of the org-unit in the process or operation:
• (A) for Accountable
• (R) for Responsible
• (R/A) for Responsible/Accountable
• (C) for Consulted
• (I) for Informed
In the example above, the "Purchasing Department" assigned to the participant to which the analysis relates, executes the "Process Purchase Request" process and is Accountable for "Process Purchase Order".
2. Click
.
.The context of responsibility of the org-unit is indicated. You can view:
• the name of the participant to which the org-unit is assigned
• the name of the process that is owner of the participant
For more details on reports relating to the RACI or an org-unit, see Org-Unit RACI Matrix (BPMN).
