Describing the Logical Application System Environment with HOPEX IT Strategy
A logical application system environment presents a logical application system use context. It describes the interactions between the logical application system and its external partners, which allows it to fulfill its mission and ensure the expected functionalities.To access the list of logical application systems from the Logical Application Architecture navigation pane:
Select Logical Application Architecture Inventories > Logical application system environment in the navigation menu.The list of logical application system environments appears in the edit area.
A logical application system diagram describes the interactions between the main internal components of the environment described and the external components.
In this example, purchase requests are formulated by private users or by companies in different contractual conditions.
The "Purchasing Request Processing" application system offers a loan service to its clients within the context of payment management.
.

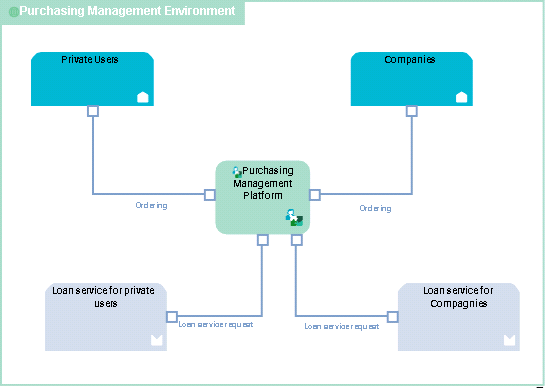

Environment diagram for the "Purchasing Requests Processing" application system.
For more details on a logical application system environment representation, see Using the Environment Structure Diagram of a Logical Application System.
