Business Architecture Breakdown Reports
Based on the same principle as the breakdown report for business capabilities, this report presents the breakdown of a business function architecture environment with respect to its components.
For more details on how to describe a business functional area, see "Describing a business architecture environment", page 38.Report example

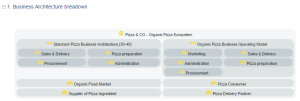

The example below shows the breakdown of the business functional area for making pizzas.
Example of breakdown report of business functional area.Report parameters
This consists of defining report input data.
Parameters | Parameter type | Constraints |
|---|---|---|
Root object | business architecture environment | One object mandatory. |
Depth level | Short | Defines the breakdown level of the business capability map or the capability entered as a parameter. |
Number of columns | Short | Defines the number of columns displayed by breakdown level (for eg. 2 or 3) |
Color palette | HOPEX palette | Mandatory. The palette delivered by default is "BoxInBox Report Monochrome Grey" |
