Creating an ArchiMate View
To create an ArchiMate View:
1. In the Models > Models navigation pane, select the ArchiMate Model Tree tile.
2. Expand the ArchiMate Models folder.
3. Right click your ArchiMate Model and select New > View.

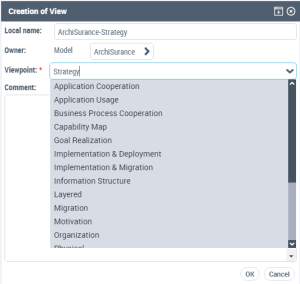

The Creation of View dialog box appears.
4. In the Viewpoint field, select the viewpoint that interest you and click OK.
The Name of the new view is automatically computed and can be modified.

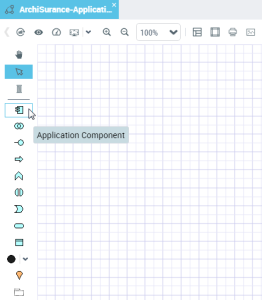

The view diagram opens in the edition area.
The diagram views are activated based on the selected Viewpoint setup. Additional views can be manually activated, or default views can be deactivated.
To activate the views window:
1. In a diagram, click Views and details button.
The list of object types to be displayed appears.
2. Select (or clear) the object types you wish to display (or not).
For more details on object types available in a viewpoint, see The properties of a viewpoint.
