Archimate Diagramming Layers
HOPEX Archimate aims at providing architects with the core content of the ArchiMate standard whilst ensuring compatibility with the other HOPEX products and solutions.
Each layer is covered by a set of viewpoints diagrams describing the main objects of the layer, and the associated reports.
Business Layer viewpoints
The Business Layer viewpoints cover the description of organizations and their responsibilities, business functions and processes which provide business services to customers or other processes;
Business Layer viewpoints are compatible with HOPEX Business Process Analysis models and HOPEX Service Design service definition models.

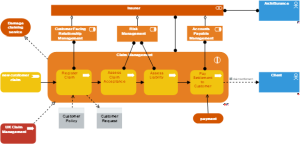

HOPEX Archimate Business Process Viewpoint
Described concept (ArchiMate) | Describing Diagram |
Business Actor | Organization Viewpoint |
Business Collaboration (Business Role of Business Collaboration type) | Actor Co-operation Viewpoint |
Business Function (Business Process of Business Function type) | Business Function Viewpoint |
Business Process | Business Process Viewpoint |
Org Process | Organizational Process Viewpoint Note : this is added to ArchiMate for consistency sake with HOPEX framework |
Product | Product Viewpoint |
Application Layer viewpoints
The Application Layer viewpoints cover the description of application components and application functions which provide application services to the business processes.
Application Layer viewpoints are compatible with and MEGA System Oriented IT Architecture application models.
Information aspects are addressed relying on both MEGA Information Architecture (for the business objects) and HOPEX Logical Data / HOPEX Database Builder / HOPEX UML (for the data objects).
.

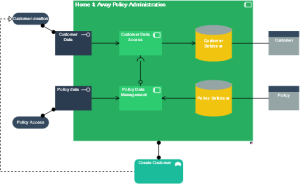

HOPEX Archimate Application Structure Viewpoint
Described concept (ArchiMate) | Describing Diagram |
IT Function | Application Behavior Viewpoint |
Application Collaboration | Application Co-operation Viewpoint |
Application Component | Application Structure Viewpoint |
Org Process | Application Usage Viewpoint |
Technology Layer viewpoints
The Technology Layer viewpoints cover the description of computing & communication infrastructures supporting the application components.
Technology Layer viewpoints are compatible with HOPEX IT Architecture "resource architecture" models.

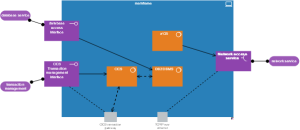

HOPEX Archimate Device Infrastructure Viewpoint
Described concept (ArchiMate) | Describing Diagram |
Node | Node Infrastructure Viewpoint |
Device | Device Infrastructure Viewpoint |
Cross Layer viewpoints
The Cross Layer viewpoints address the transverse viewpoints not linked to a specific layer.
• Information Structure Viewpoint: enables the creation of a "data model" defining associations between data objects and linking data objects to business objects.
• Service Realization Viewpoint: enables the summary of the realization of a business service by Business Processes, Org Processes and Application Services and Components
Described concept (ArchiMate) | Describing Diagram |
Information Model | Information Structure Viewpoint |
(Business) Service | Service Realization Viewpoint |
