Associations

Creating an Association
Roles (or Association Ends)
Multiplicity of a Role
Specifying role multiplicity
Association End Navigability
Specifying navigability for a role
Association End Aggregation
Specifying role aggregation
Association End Composition
Role Changeability
Role Order
Role Static Property
Role Qualifier
Overloading a Role
Association Classes
Displaying an N-ary Association
Reflexive Associations
Creating a reflexive association
An association is a relationship that exists between two classes.
An association is binary when it links two classes, ternary when it links three classes, etc.
Associations can be compared to links between index cards.

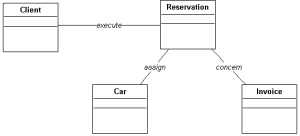

The following drawing provides a three-dimensional view of the situations a class diagram can store.
Peter and Mary are clients. Peter has made reservations numbers 312 and 329.
A class diagram should be able to store all situations in the context of the company.
Examples of associations:
A client issues an order.
An order includes several products.
