Describing a Use Case by a System Process

HOPEX System Blueprint : HOPEX System Blueprint : Modeling Use Case System Processes : Modeling Tasks of a System Process : Describing a Use Case by a System Process

To create a system process from a use case:

1. Right-click the use case to open its pop-up menu.

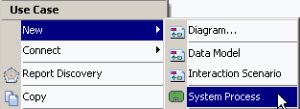

2. Select New > System Process.

The diagram of a new system process opens. The system process associated with the use case is already positioned in the diagram.

To change the name of the system process created:

1. Click the name of the process.

2. Press key <F2>

3. Enter the new name of the process.

For more details on creation system process diagrams, see “Managing a System Process", page 68.
