Opening an Objective and Requirement Diagram
To open an objective and requirement diagram, for example, the diagram describing the "Urgent Purchase Processing Automation" project from the "Urgent purchases" Library:
1. Right-click the project to open its pop-up menu.
2. Double-click Project Objective and Requirement Diagram.
The diagram opens.

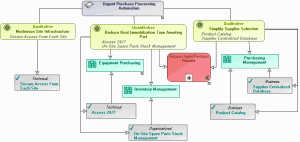

The urgent purchase processing process must respect company objectives related to reducing boat immobilization time and simplifying access to suppliers and products.
In addition, the equipment purchasing application must be accessible 24/7. The inventory management application must integrate the requirements for setting up product catalog and supplier database. Finally, the inventory management application must integrate the on-site spare parts management requirement.
To show application and organizational components in an objective and requirement diagram, you must have activated the corresponding view from
View > Views and Details.
Organizational processes are available with the
HOPEX Business Process Analysis product.
