The concept life cycle structure diagram
The concept life cycle structure diagram is used to describe the sequence of state concepts operating during the concept life cycle. Each state concept, which can be considered as point in time, is followed by other state concepts.
Passage from one state to another is modeled by a transition.

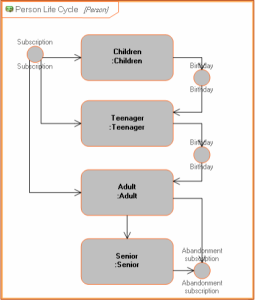

Example of a concept life cycle structure diagram
For more details, see "Concept life cycle structure diagram".
