Previewing Diagrams
MEGA Web Front-End allows you to preview diagrams:
• describing an object
• containing an object
To preview a diagram:
1. In a navigation window (for example)., select the object that interests you.
2. In the pop-up menu, select Preview.
To view diagrams containing the object, click
Diagrams Containing Object in the pop-up menu. The list of diagrams appears. Select the diagram that interests you.
The diagram opens.

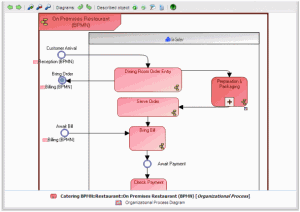

Display an example
A specific toolbar appears at the top of the diagram.
Two buttons allow you to display the list of diagrams containing or describing an object. You can use the mouse wheel to navigate between the different diagrams.
Using the Diagram Objects Toolbar
From the diagram toolbar you can carry out different actions on the diagram or on the object described by the diagram:
• Enlarge or reduce the image by zoom in and out.
• Zoom in (
).
• Zoom out (
).
• Return to original image size (
See all
).
The mouse wheel also allows you to zoom in and out.
• Go to the object properties page (
).
• Access diagrams containing the described object.
The object blinks when it appears in another diagram.
• Open the diagram Help page (
).
Unavailable options are grayed.
You can also move the image on the page (click the image and move the mouse while holding its button down).
The diagram name and type appear at the bottom of the page.
Displaying the pan menu in a preview diagram
Objects of diagrams are "active".
Select an object in the preview diagram.
A pan menu appears on the object.
With this menu you can:
• Access object properties (icon
).
• Generate a report on the object (icon
).
• Access the diagram describing the object (icon
).
• Access diagrams containing the object (icon
).
Unavailable options are grayed.
