How to Replace Node Icons by Property Values in a Dendrogram
In a dendrogram, you might want to highlight a property of a node and replace its icons by the property values.
For example, for a Technology, instead of displaying the Technology icon, you can display its "Company Standard" value (represented by a color).
To display a property value instead of the node icon:
1. Access the Report Tree View.
2. In its Tree page, select the row of the Report Tree Node concerned.
Example: Technologies used.

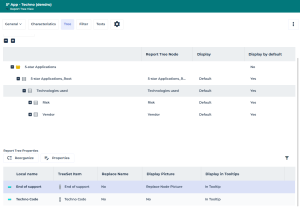

3. In the Report Tree Properties list, in the row of the property concerned, use the drop-down list to set Display Picture to "Replace Node Picture".
Example: "Standard" property (which stands for "Company Standard" MetaAttribute of "Software Technology" MetaClass).

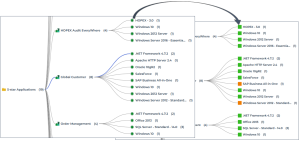

In the dendrogram, colored squares corresponding to the values of the "Standard" property replace the Technology icons.
