How to Group Report Data Views in a Report Chapter

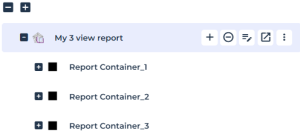

By default the Report Containers are displayed in a single column.
To modify the display of the Report Containers (e.g.: on a same row, in separate tabs) you need to create a Report Container Group so as to group Report Data Views in the Report Chapter.
Grouping Report Data Views of a Report Chapter
Prerequisite: the Report Data Views of the Report Chapter are created.
To group Report Data Views of a Report Chapter:

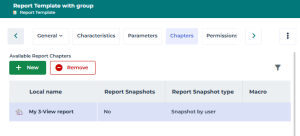

1. Access the Report Template (based on Data Views) concerned and display its Chapters page.
2. Hover the cursor over the Report Chapter and select
New > Report Container Group.
3. In the Creation of Report Container Group, enter its Local name.
4. Click OK.

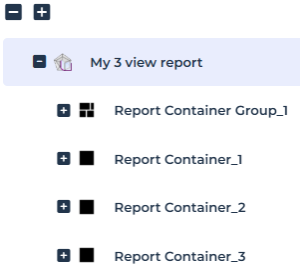

The Report Container Group is added to the report Chapter tree.
5. Drag and drop into the Report Container group, each of the Report Containers you want to group.

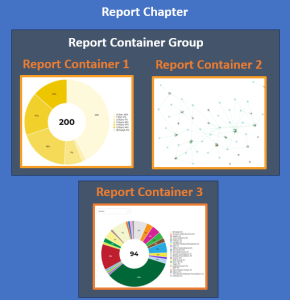

Example 1: drag and drop two of the three Report Containers included into the Report Chapter.
With Report Container Group_1 Organization set to “Horizontal"), this Report Chapter display looks like:

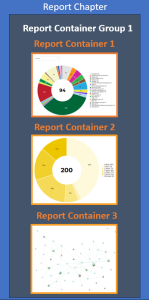

Example 2: drag and drop all of the Report Containers included into the Report Chapter.
This Report Chapter display looks like:
Creating a Report Chapter with grouped Report Data Views
Prerequisite: the Report Data Views you want to group in the Report Chapter are created.
To create a Report Chapter with grouped Report Data Views:
1. Access the Report Template.
2. Display its Chapters page.
3. Select the Report Chapter, and in the bottom pane, right-click the Report Chapter and select New > Report Container Group.
4. In the Creation of Report Container Group window, enter its Local name.
5. Click OK.

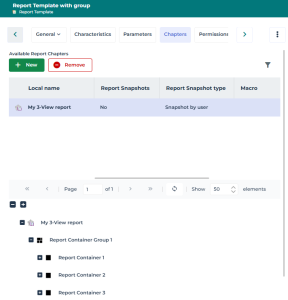

The Report Container Group is added in the report Chapter tree.
6. Right-Click the Report Container Group and select New > Report Container:
• In the Creation of Report Container window, enter its Local name.
• In Display Content filed, use the drop don arrow to select the report Data View.
• Click OK.
7. Repeat the Report Container creation steps to add the other Report Data Views.
Example 2: drag and drop all of the Report Containers included in the Report Chapter.
By default, this Report Chapter display looks like:
