9 Customizing Diagrams for a WET

Hiding the Diagram Column in Lists
Hiding the Diagram Column in a Specific List
9.1 Hiding the Diagram Column in Lists
The diagram column in lists enables to view the number of diagrams already created for the object, and access them directly. It also enables to create a diagram if none is available for the object. You can hide the diagram column in all the lists of your Solution at the following levels:
• WET
• Desktop
• Desktop container
To hide the diagram column in lists:
1. Access the properties of the element concerned.
2. In its Texts page, enter the following code:
[ListViewExtraColumns]
ShowDiagramColumn = 0
With ShowDiagramColumn values: “0” the column is hidden, “1” the column is displayed.

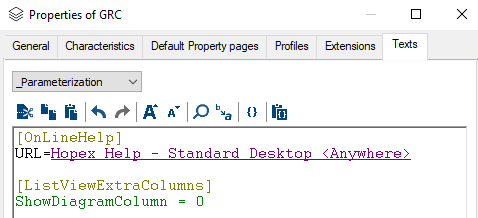

For example: in the GRC Solution where diagrams are not used, in the GRC WET properties, Texts shows:
A screenshot of a computer Description automatically generated

9.2 Hiding the Diagram Column in a Specific List
Instead of hiding the diagram column for all the lists, you can hide it for a specific list only.
To hide the diagram column in a specific list:
1. Enter the following code:
ShowDiagramColumn=0
Example:
ApplicationList = Item(~MrUiM9B5iyM0[Application]),Contains(Applications),Control(ListView),Title(No),Param(NoDefaultColumn,ReOrder,ShowAlternate=DropDown,ToolBar[-R],MultiSelection,ExportCommands=XG,ShowDiagramColumn=0)
