DiagTabList Properties

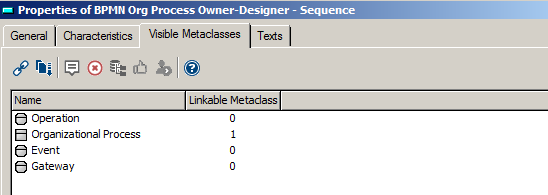

The list of Metaclasses described in tabs is defined in the Visible MetaClasses property page of the DiagTabList object.

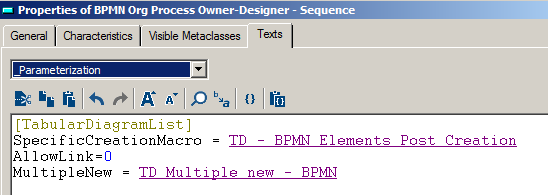

You can adjust your list with the buttons and tools of interest by specifying a [TabularDiagramList] in the _Parameterization section of the Texts property page of the DiagTabList object.
The following table shows the parameterization and the corresponding functionalities provided for DiagTabList objects.
Parameterization | Functionality |
|---|---|
SpecificCreationMacro | Takes a macro as argument. The Macro implements a specific creation for he New button in the list view. |
MultipleNew | Takes a MetaWizard as an argument. The MetaWizard is called by the Multiple Add button, see Using Multiple Add. |
AllowAdd | Takes “0” or “1” to hide or show the New button. |
AllowDelete | Takes “0” or “1” to hide or show the Delete button. |
AllowLink | Takes “0” or “1” to hide or show the Connect button. |
AllowUnLink | Takes “0” or “1” to hide or show the Disconnect button. |
DiagTabList Parameterization
