BPMN/HOPEX Object Correspondence

Conventions

Object Correspondences

Specific Mapping Cases

The BPMN import feature translates a BPMN-compliant output file into a BPMN element specification in HOPEX. It is based on a set of mappings between BPMN version 2.0 and the HOPEX BPMN Process metamodel (including diagrams).

Conventions

BPMN concepts relate to the following OMG Specification document: “Business Process Model and Notation (BPMN), formal/2011-01-03”.

BPMN elements are delimited by <..>.

BPMN attributes are prefixed by ::.

HOPEX concept names start with uppercase. Example: Task.

Object Correspondences

The following table indicates concepts managed by the import tool:

The mapping of BPMN Processes and Tasks depends on the type of process selected in BPMN import wizard (Value Stream, Process or System Process).

Nb: Process Categories are not proposed as a target.

BPMN Concepts		HOPEX Concepts
<process>		Process
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
<task>		Owned Operation
<dataStore> and <dataStoreReference>		Owned Data Store
		Owned Element
	<gateway>		Gateway
	< event>		Event
	< sequenceFlow>		Sequence Flow
	< dataObject> and <dataObjectReference>		Data Object
	< messageFlow>		Message Flow
	< participant> or <lane>		Participant
< laneSet> and <lane>		Internal Participant
<callActivity> or <subProcess>		Owned Process
<dataStoreReference> and <dataStoreRef>		Owned Update Association
<dataStoreReference> and <dataStoreRef>		Owned Read Association
< textAnnotation> and <text>		Note
<BPMNDiagram>		Description
<task> (See Table 1)		Operation
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
	isForCompensation		Compensation
	<standardLoopCharacteristics>		Loop
	< loopCondition>		Loop Condition
	< multiInstanceLoopCharacteristics >		Multiple
calledElement		Called Process
<dataInput> and <dataInputAssociation>		Data Object Used or BPMN Data Store Read Association
< dataOutput> and <dataOutAssociation>		Data Object Used or BPMN Data Store Read Association
< textAnnotation> and <text> < textAnnotation> and <text>		Note
<gateway> (See Table 2)		Gateway
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
< textAnnotation> and <text> < textAnnotation> and <text>		Note
<event> (See Table 3)		Event
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
	isInterrupting or cancelActivity		Interrupting
attachedToRef		Bounded Activity
< textAnnotation> and <text> < textAnnotation> and <text>		Note
<SequenceFlow>		Sequence Flow
	id		_Hexaidabs
	<documentation>		Comment
	<conditionExpression>		Predicate
sourceRef		Predecessor
targetRef		Successor
<dataObject> and <dataObjectReference>		Data Object
	name		Short Name
	id		_Hexaidabs
	isCollection		Collection
	<dataObjectReference> and <documentation>		Comment
	< dataObjectReference::name>		Data Object Status
<dataStore> and <dataStoreReference>		Data Store
	name		Short Name
	id		_Hexaidabs
	Link Input and Output to DataStore		Access into the Data Store or out of the data store
<messageFlow>		Message Flow
	id		_Hexaidabs
	< documentation>		Comment
sourceRef		Source Element
targetRef		Target Element
<lane>		Internal Participant
	name		Assignment
	id		BPMN Element
name		Assignment
<flowNodeRef>		BPMN Element
<participant>		External Participant
	name		Short Name
	id		_Hexaidabs
name		Assignment
<textAnnotation> and <text>		Note
<textAnnotation> and <association>		Note
	id		_Hexaidabs
	< documentation>		Comment

BPMN Concepts		HOPEX Concepts
<process>		System Process
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
<task>		Owned Task
<dataStore> and <dataStoreReference>		Owned Data Store
		Owned Element
	<gateway>		Gateway
	< event>		Event
	< sequenceFlow>		Sequence Flow
	< dataObject> and <dataObjectReference>		Data Object
	< messageFlow>		Message Flow
	< participant> or <lane>		Participant
< laneSet> and <lane>		Internal Participant
<callActivity> or <subProcess>		Owned System Process
<dataStoreReference> and <dataStoreRef>		Owned Update Association
<dataStoreReference> and <dataStoreRef>		Owned Read Association
< textAnnotation> and <text>		Note
<BPMNDiagram>		Description
<task> (See Table 1)		Task
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
	isForCompensation		Compensation
	<standardLoopCharacteristics>		Loop
	< loopCondition>		Loop Condition
	< multiInstanceLoopCharacteristics >		Multiple
calledElement		Called Process
<dataInput> and <dataInputAssociation>		Data Object Used or BPMN Data Store Read Association
< dataOutput> and <dataOutAssociation>		Data Object Used or BPMN Data Store Read Association
< textAnnotation> and <text> < textAnnotation> and <text>		Note
<process>		Value Stream
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
<task>		Owned Value Stage
<dataStore> and <dataStoreReference>		Owned Data Store
		Owned Element
	<gateway>		Gateway
	< event>		Event
	< sequenceFlow>		Sequence Flow
	< dataObject> and <dataObjectReference>		Data Object
	< messageFlow>		Message Flow
	< participant> or <lane>		Participant
< laneSet> and <lane>		Internal Participant
<callActivity> or <subProcess>		Owned Value Stream
<dataStoreReference> and <dataStoreRef>		Owned Update Association
<dataStoreReference> and <dataStoreRef>		Owned Read Association
< textAnnotation> and <text>		Note
<BPMNDiagram>		Description
<task> (See Table 1)		Value Stage
	name		Short Name
	id		_Hexaidabs
	<documentation>		Comment
	isForCompensation		Compensation
	<standardLoopCharacteristics>		Loop
	< loopCondition>		Loop Condition
	< multiInstanceLoopCharacteristics >		Multiple
calledElement		Called Value Stream
<dataInput> and <dataInputAssociation>		Data Object Used or BPMN Data Store Read Association
< dataOutput> and <dataOutAssociation>		Data Object Used or BPMN Data Store Read Association
< textAnnotation> and <text> < textAnnotation> and <text>		Note

Table 1:

BPMN		Task Type
<task>		Task Type
	< userTask>		User
	< serviceTask>		IT-Service Call
	< callActivity>		System Process Call
	< scriptTask >		Script
	< receiveTask>		Send
	< manualTask>		Receive
	< businessRuleTask>		Manual

Table 2:

BPMN		Gateway Type
Gateway Type		Gateway Type
	<inclusiveGateway>		Inclusive
	<complexGateway>		Complex
	<parallelGateway>		Parallel
	<exclusiveGateway>		Exclusive (Data)
	<eventBasedGateway> and ::eventGatewayType=Exclusive and ::instantiate=false		Exclusive (Event)
	<eventBasedGateway> and ::eventGatewayType=Exclusive and ::instantiate=true		Exclusive (Instantiate)
	<eventBasedGateway> and ::eventGatewayType= Parallel and ::instantiate=true		Parallel (Instantiate)

Table 3:

		Event Nature				Bounded Activity
		Start	End	Throw	Catch	Bounded Activity
		<startEvent>	<endEvent>	<intermediateThrowEvent>	<intermediateCatchEvent>	<boundaryEvent>
Event Type	Generic
	Message	<messageEventDefinition>	<messageEventDefinition>	<messageEventDefinition>	<messageEventDefinition>	<messageEventDefinition>
	Timer	<timerEventDefinition>	*	*	<timerEventDefinition>	<timerEventDefinition>
	Error	<errorEventDefinition>	<errorEventDefinition>	*	*	<errorEventDefinition>
	Cancel	*	<cancelEventDefinition>	*	*	<cancelEventDefinition>
	Compensation	<compensateEventDefinition>	<compensateEventDefinition> and ::waitForCompletion=true	<compensateEventDefinition> and ::waitForCompletion=true	*	<compensateEventDefinition> and ::waitForCompletion=true
	Conditional	<conditionalEventDefinition> and <condition>	*	*	<conditionalEventDefinition> and <condition>	<conditionalEventDefinition> and <condition>
	Link	*	*	<linkEventDefinition>	<linkEventDefinition>	*
	Signal	<signalEventDefinition>	<signalEventDefinition>	<signalEventDefinition>	<signalEventDefinition>	<signalEventDefinition>
	Terminate	*	<terminateEventDefinition>	*	*	*
	Escalation	<escalationEventDefinition>	<escalationEventDefinition>	<escalationEventDefinition>	*	<escalationEventDefinition>
	Parallel Multiple	::parallelMultiple=true	*	*	::parallelMultiple=true	::parallelMultiple=true
	Multiple

* = Combination not possible

Specific Mapping Cases

BPMN Concepts imported	Result in HOPEX
Process
One process per file	The process is described in the resulting diagram.
One process with external participants (that do not refer to processes)	The process is described in the resulting diagram.
Several processes per file	A new “container” process is created in MEGA. It is the object of the resulting diagram and it contains the different processes imported.
DataStore/DataStorereference (Datainput/Dataoutput)
(Reminder) DataStore DataStoreReference	Concept Domain Process Data Store
DataStore without Reference	As a Concept Domain can not be represented graphically on its own in HOPEX, a Process Data Store is created without a Concept Domain.
DataStoreReference + DataStore	References resulting in DataStores are represented in the diagram. The Concept Domain is referenced if it already exists. Otherwise, it is not created.
Dataobject/Dataobjectreference (Datainput/Dataoutput)
(Reminder) DataObject DataObjectReference	Content DataObject
DataObject without Reference	As a content can not be represented graphically on its own in HOPEX, a DataObject is created with a content.

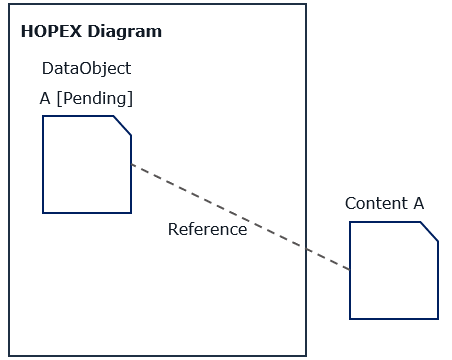

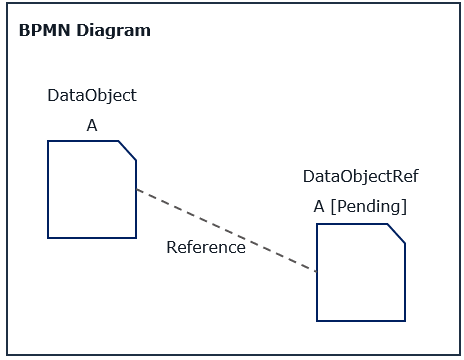

DataObjectReference + DataObject in the diagram	References resulting in DataObjects are represented in the diagram. The content is also created but not represented in the diagram.

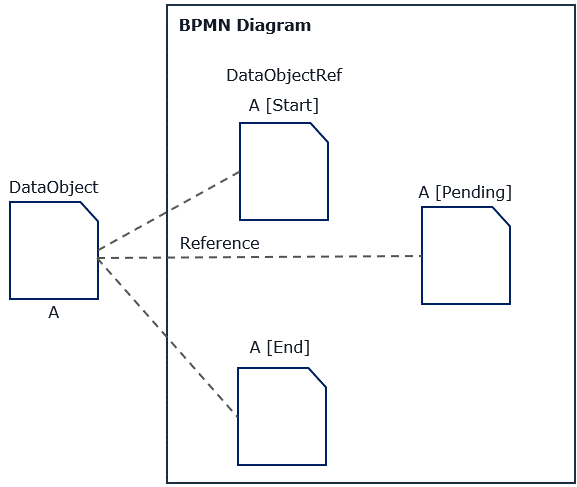

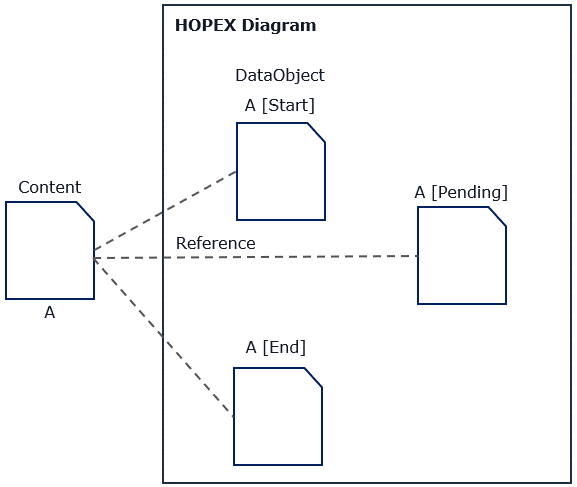

DataObjectReferences in the diagram + DataObject outside the diagram	References resulting in DataObjects are represented in the diagram, with their status. A content is also created, not represented in the diagram.
Cases of DataInput/DataOutput	Links between DataInput/DataOutput and Events are not handled. Indeed, in HOPEX you can not create links between DataObject and Event.

Comments on TextAnnotations

If the “textAnnotation” tag contains a “text” tag, and if the latter contains a chain, this chain is included in the comment of the Note object. If the chain contained in the “text” tag is empty or if the “text” tag does not exist, the chain contained in the “documentation” tag, under the “textAnnotation” tag, is taken.
