Defining the Diagram Layout
You can define the diagram layout:
• number of pages on which the diagram is displayed
*When you move an element outside the diagram area, the page number is automatically updated.
*You cannot reduce the size of a diagram if elements appear in deleted pages: all elements should be placed in pages that will be kept before reducing format (display of page boundaries simplifies this operation).
• paper size
E.g.: A3, A4, or its Width x Height values in inches.
• Margins (in inches)
*The Margins are superimposed on those defined by the printing device. This is done so that any information in these margins is not lost.
• orientation
E.g.: Portrait or Landscape.
You can also indicate a scaling percentage when printing.
Defining the layout settings
To define the diagram layout:
1. Access the diagram in edit mode.
2. In the diagram toolbar, click Diagram layout .

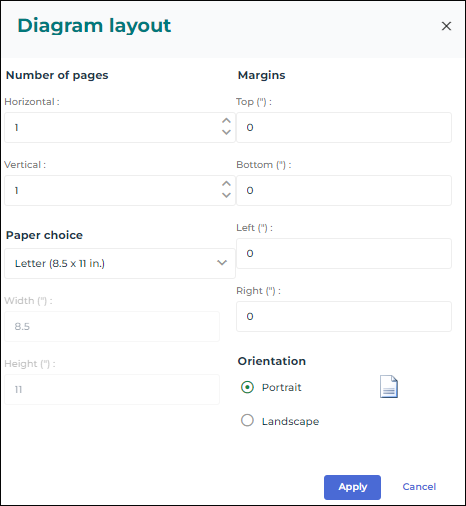

The Diagram layout window opens.
3. Modify the page layout parameters.
4. Click Apply.
Layout limitations

Page number limitation
(Height x width)
A4 Landscape
6 x 8
A4 Portrait
9 x 6
Letter Landscape
7 x 8
Letter Portrait
9 x 7

Platform limitations
Maximum width
200 cm
Maximum height
200 cm
Maximum number of pages in width
11
Maximum number of pages in height
8
*(*) These limitations prevail over any other setting.
In the diagram toolbar, click More options > Page limitations to view your diagram position against page limitations.
Printing a Diagram
Printing a diagram consists of generating a PDF format file that you can then print.
Before generating the file, you can choose its printing mode:
• None (default): uses the settings defined in the diagram page setup (number of pages, paper size, and page orientation), with a non-editable zoom level of 100%.
• Enlarge/reduce: enables to adjust the size of the diagram for printing. You must define the number of Pages (Width and Height) on which you want to print the diagram.
*The zoom level is automatically adjusted accordingly and gives an indication of the print result.
• Auto-size: the PDF file page size matches the diagram size, using the margins defined in the diagram layout.
*The diagram page setup parameters (number of pages, paper size, and page orientation) are ignored.
To print a diagram:
1. Access the diagram (in edit or view mode).
2. In the diagram toolbar, click Print diagram.
3. (If needed) In the Scaling section, modify the print Mode.
E.g.: select "Auto-size".
4. Click OK.
Once generated, the PDF file is available in your Windows Downloads folder.
5. Print the PDF file.
