Creating a Process Map diagram
You can create a Process Map diagram using two different modes.
• Graphical mode: with this mode, you can easily import in your diagram the Process Categories already created.
• Tabular mode: with this mode, you can easily add multiple new Process Categories in your diagram.
The user can choose the opening mode of a diagram if the option
Choice of diagram opening mode is set to
Ask the user through Main Menu > Settings > Options> Compatibility > Diagram.
Creating a Process Map diagram in graphical mode
To create a Process Map diagram in graphical mode:
1. In the Process Map list, click the button
Create Diagram
related to the selected Process Map.
The diagram creation window opens.
2. Select Process Map > Create diagram in graphical mode.

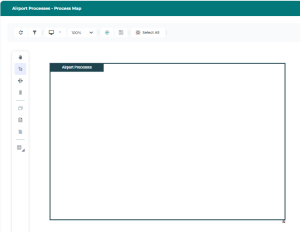

An empty Process Map diagram appears in graphical mode.
3. To complete the Process Map diagram, you can:
• Import existing Process Categories
• Add new Process Categories
To import existing Process Categories:
Click
Add sub-categories
then
Reorganize.
To add / connect Process Categories manually:
Click
Process Category
Creating a Process Map diagram in tabular mode
To create a Process Map diagram in tabular mode:
1. In the Process Map list, click the button
Create Diagram related to the selected Process Map.
The diagram creation window opens.
2. Select Process Map > Create diagram in tabular mode.

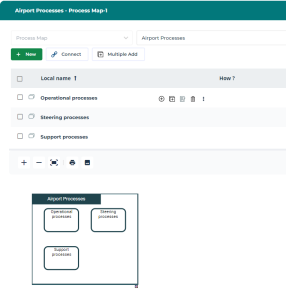

The diagram creation window in tabular mode opens.
3. To complete the Process Map diagram, you can:
• Add one or several Process Categories with the New and Multiple Add buttons.
• Add an existing Process Category with the Connect button.
When you create a Process Category, it appears in the table (upper part of the screen) and in the diagram preview (bottom part of the screen).
