Creating a Process Diagram in Tabular Mode
To create a process diagram in tabular mode:
1. In the Process list, click the Create Diagram icon related to the relevant Process.
2. Select Create a diagram in tabular mode.
The diagram creation window opens.
*You can also create a process diagram from the homepage > Quick Access > Actions tab > Create a Process diagram.
3. Complete the Process diagram by:
• adding one or several object types in the What? column.
• identifying the participants in the Who? column
• defining the sequence flows with the Previous Item and Next Item columns
4. (Optional) Link objects to operations in the Operations tab.
*When more than three objects are linked to an operation, the additional objects are placed outside the diagram. These must be manually repositioned using graphical mode. See Limitations du mode tabulaire.

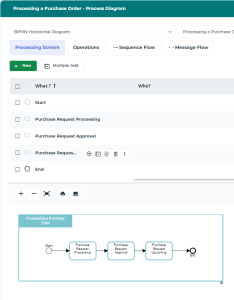

Objects added in the table (upper part) appear in the diagram preview (bottom part).
*For further details on tabular entry mode, see .Diagrams in Tabular Entry Mode
*You can easily switch to graphical mode with the Edit the diagram icon.
